200-301 · Question #898

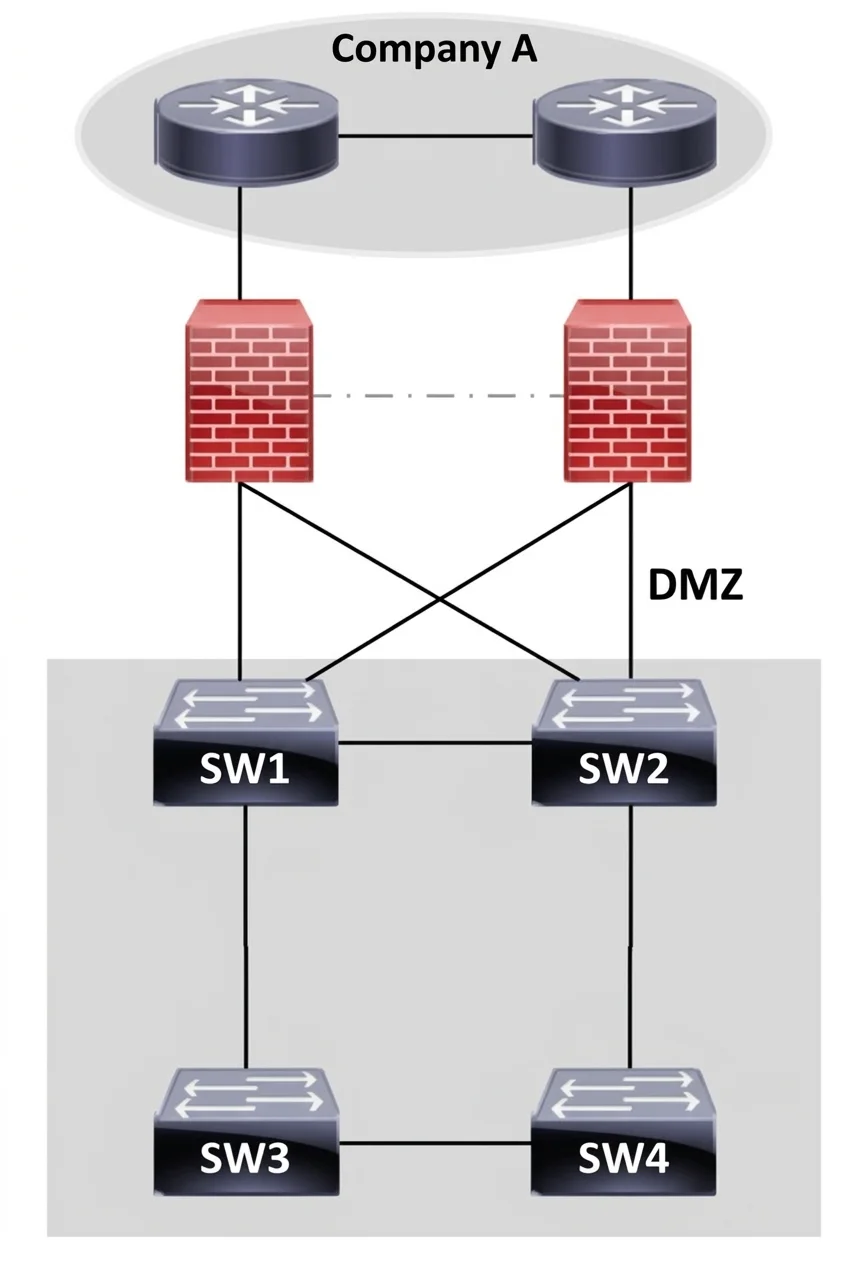

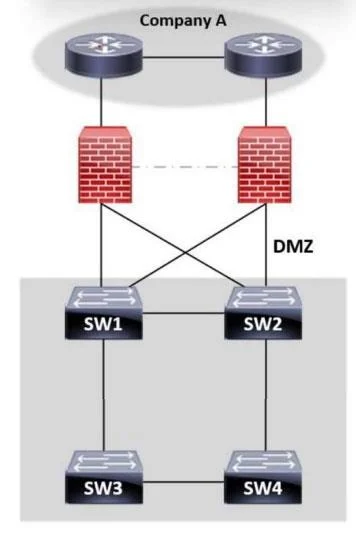

Refer to the exhibit. Which switch becomes the root of a spanning tree for VLAN 10 if the primary switch fails and all links are of equal speed?
The correct answer is C. SW3. Switch 2 is primary. But in this context, that is to say when it fails, the primary is chosen between SW1, SW3 and SW4. Thus, SW3 becomes the root.
Submitted by zhang_li· Mar 5, 2026Network Access
Question
Refer to the exhibit. Which switch becomes the root of a spanning tree for VLAN 10 if the primary switch fails and all links are of equal speed?
Exhibits
Options
- ASW1
- BSW2
- CSW3
- DSW4
How the community answered
(43 responses)- A9% (4)
- B21% (9)
- C63% (27)
- D7% (3)
Explanation
Switch 2 is primary. But in this context, that is to say when it fails, the primary is chosen between SW1, SW3 and SW4. Thus, SW3 becomes the root.
Topics
#STP#Root Bridge Election#PVST+#Network Convergence
