Refer to the exhibit. Only four switches are participating in the VLAN spanning-tree process. Branch-1 priority 614440 Branch-2: priority 39082416 Branch-3: priority 0 Branch-4: root primary Which swi

The correct answer is C. Branch-3. Ideally the root bridge is placed on a core switch, and a secondary root bridge is designated to minimize changes to the overall spanning tree. Root bridge placement is accomplished by lowering the system priority on the root bridge to the lowest value possible, raising the secon

Submitted by wei.xz· Mar 5, 2026Network Access

Question

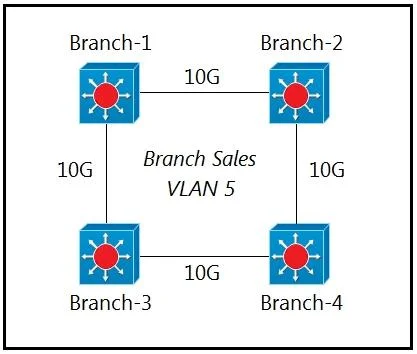

Refer to the exhibit. Only four switches are participating in the VLAN spanning-tree process. Branch-1 priority 614440 Branch-2: priority 39082416 Branch-3: priority 0 Branch-4: root primary Which switch becomes the permanent root bridge for VLAN 5?

Exhibits

Options

ABranch-1
BBranch-2
CBranch-3
DBranch-4

How the community answered

(27 responses)

A
4% (1)
B
11% (3)
C
78% (21)
D
7% (2)

Explanation

Ideally the root bridge is placed on a core switch, and a secondary root bridge is designated to minimize changes to the overall spanning tree. Root bridge placement is accomplished by lowering the system priority on the root bridge to the lowest value possible, raising the secondary root bridge to a value slightly higher than that of the root bridge, and (ideally) increasing the system priority on all other switches. This ensures consistent placement of the root bridge.

Topics

#Spanning Tree Protocol#STP root bridge election#VLAN STP

Community Discussion

No community discussion yet for this question.
