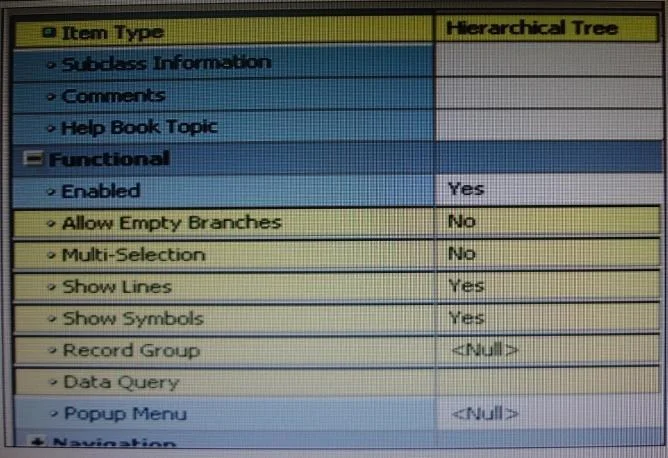

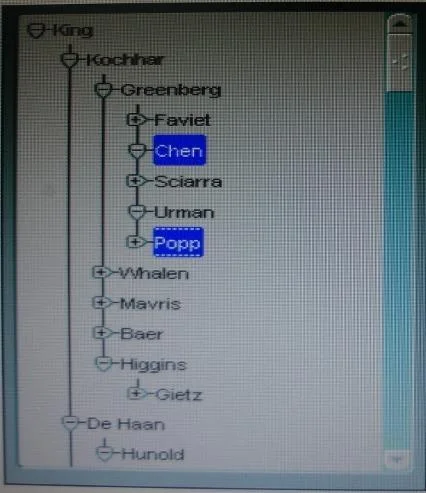

View the Exhibits.The hierarchical tree shown at run time in Exhibit 1 is populated programmatically. Default hierarchical tree properties are shown in Exhibit? Which properties of the hierarchical…

Question

Exhibits

Options

• AAllow Empty Branches and Multi Selection only
• BAllow Empty Branches and Show Symbols only
• CMulti Selection and Show Symbols only
• DAllow Empty Branches, Multi Selection, and Show Symbols

• A
  85% (55)
• B
  9% (6)
• C
  5% (3)
• D
  2% (1)

Explanation

Both Chen and Popp are selected, so Multi-selection is set to Yes (not B). + and ?symbols are displayed, so Show Symbols is yes (not B, C, D). Allow Empty Branches is set to Yes (so A is ok), see note below. Note: Setting Hierarchical Tree Item Properties Hierarchical Tree properties include the following: * Item Type: Must be set to Hierarchical Tree * Allow Empty Branches: Yes / No. No is the default. If set to Yes, all leaf nodes will initially display in the tree with the plus sign (+) next to it, indicating that expansion is possible, even when there is nothing to expand. If set to Yes, the Show Symbols property must also be set to Yes. If set to No, leaf nodes will not have an expand/collapse symbol * Multi Selection: Whether multiple nodes may be selected at one time No is the default. * Show Lines: Whether a hierarchical tree displays lines leading up to each node Yes is the * Show Symbols: Whether a hierarchical tree should display + or - symbols in front of each * Record Group: Name of the record group from which the hierarchical tree derives its values * Data Query: Specifies the query-based data source
