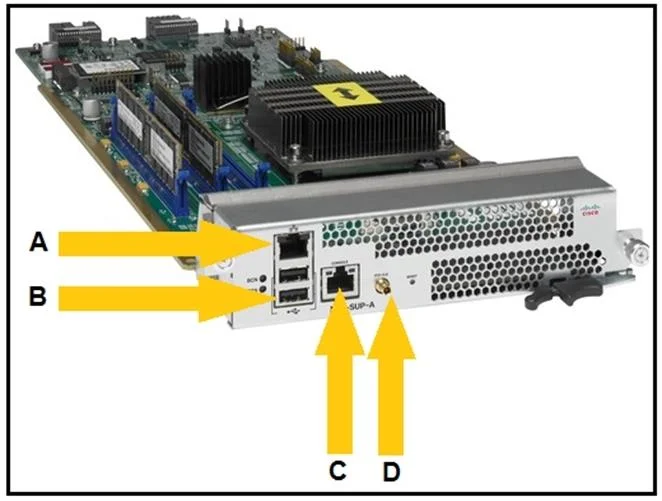

Refer to the exhibit. Which statement correctly identifies the hardware features on the Cisco Nexus 9500 Series supervisor A modules?
The correct answer is A. A is 10/100/1000 Management port; B is USB port; C is Console port; D is external clock input. On the Cisco Nexus 9500 Series Supervisor A module, the port layout from left to right is: 10/100/1000 Management port (A), USB port (B), Console port (C), and external clock input (D).
Question
Refer to the exhibit. Which statement correctly identifies the hardware features on the Cisco Nexus 9500 Series supervisor A modules?

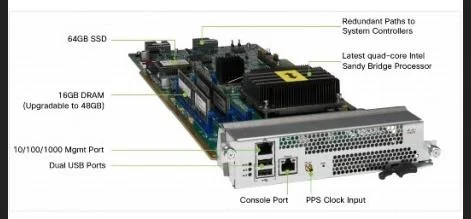

Exhibit
Options
- AA is 10/100/1000 Management port; B is USB port; C is Console port; D is external clock input
- BA is Console port; B is USB port; C is 10/100/1000 Management port; D is external clock input
- CA is Optical port; B is USB port; C is 10/100/1000 Management port; D is external clock input
- DA is Console port; B is USB port; C is 10/100/1000 Management port; D is Diagnostic port
How the community answered
(36 responses)- A83% (30)
- B3% (1)
- C6% (2)
- D8% (3)
Why each option
On the Cisco Nexus 9500 Series Supervisor A module, the port layout from left to right is: 10/100/1000 Management port (A), USB port (B), Console port (C), and external clock input (D).
The Nexus 9500 Supervisor A module places the out-of-band 10/100/1000 Management Ethernet port at position A, enabling remote management access. Position B is a USB port for bootable media or file transfer, position C is the RJ-45 Console port for direct CLI access, and position D provides an external clock input for synchronization purposes. This layout matches the hardware installation guide diagrams for the Nexus 9500 platform.
This choice incorrectly places the Console port at position A and the Management port at position C, reversing the actual physical layout of the supervisor module.
This choice incorrectly identifies position A as an Optical port, which does not exist on the Nexus 9500 Supervisor A module in that location.
This choice incorrectly labels position D as a Diagnostic port rather than the external clock input that is actually present on the supervisor module.
Concept tested: Cisco Nexus 9500 Supervisor A module port identification
Source: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/hw/nexus_9500_hardware_install_guide/nexus_9500_hardware_install/nexus_9500_hardware_install_supervisor.html
