010-151 · Question #53

Refer to the exhibit. Which three options are features of the Cisco UCS 6248UP Fabric Interconnect front panel? (Choose three.)

The correct answer is A. Console port D. Fan module E. USB port. The Cisco UCS 6248UP Fabric Interconnect front panel includes a console port, fan modules, and a USB port as physically accessible components.

Cisco Data Center Equipment and Related Hardware

Question

Refer to the exhibit. Which three options are features of the Cisco UCS 6248UP Fabric Interconnect front panel? (Choose three.)

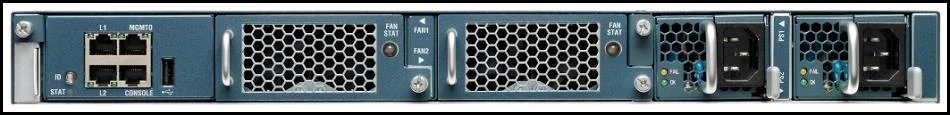

Exhibit

010-151 question #53 exhibit

Options

  • AConsole port
  • BFCoE port
  • C10 Gb/s port
  • DFan module
  • EUSB port

How the community answered

(47 responses)
  • A
    77% (36)
  • B
    15% (7)
  • C
    9% (4)

Why each option

The Cisco UCS 6248UP Fabric Interconnect front panel includes a console port, fan modules, and a USB port as physically accessible components.

AConsole portCorrect

The UCS 6248UP front panel provides an RJ-45 console port for direct serial management access, which is a standard out-of-band management feature present on the front panel of Cisco Fabric Interconnects.

BFCoE port

The UCS 6248UP does not have distinct FCoE-only ports; its data ports are unified ports that can be configured for Ethernet or Fibre Channel/FCoE, so 'FCoE port' is not a labeled front-panel component.

C10 Gb/s port

Although the 6248UP unified ports operate at 10 Gb/s, they are designated as unified ports rather than standalone '10 Gb/s ports,' and this choice does not identify a separately labeled front-panel element as shown in the exhibit.

DFan moduleCorrect

Fan modules are front-panel accessible on the UCS 6248UP, allowing airflow management and fan replacement from the front of the chassis.

EUSB portCorrect

A USB port on the front panel of the UCS 6248UP enables local administrative tasks such as loading firmware or saving configuration files from portable storage media.

Concept tested: Cisco UCS 6248UP Fabric Interconnect front-panel components

Source: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/hw/6200-install-guide/6200_HIG.html

Topics

#UCS 6248UP#Fabric Interconnect#front panel#hardware features
