NSE7_SDW-7.2 · Question #55

Refer to the exhibits. Exhibit A Exhibit B Exhibit A shows the packet duplication rule configuration, the SD-WAN zone status output, and the sniffer output on FortiGate acting as the sender. Exhibit…

The correct answer is A. On the receiver FortiGate, packet-de-duplication is enabled. D. On the sender FortiGate, duplication-max-num is set to 3. See the full explanation below for the reasoning.

Question

Refer to the exhibits. Exhibit A Exhibit B Exhibit A shows the packet duplication rule configuration, the SD-WAN zone status output, and the sniffer output on FortiGate acting as the sender. Exhibit B shows the sniffer output on a FortiGate acting as the receiver. The administrator configured packet duplication on both FortiGate devices. The sniffer output on the sender FortiGate shows that FortiGate forwards an ICMP echo request packet over three overlays, but it only receives one reply packet through T_INET_1_0. Based on the output shown in the exhibits, which two reasons can cause the observed behavior? (Choose two.)

Exhibits

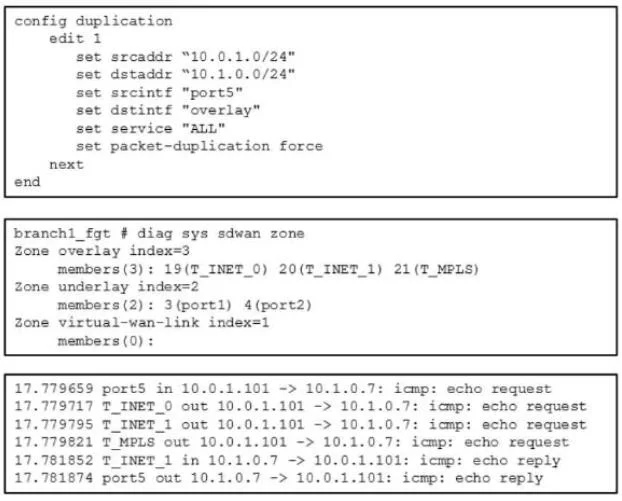

NSE7_SDW-7.2 question #55 exhibit 1

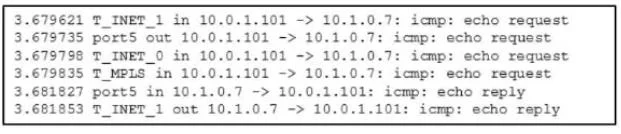

NSE7_SDW-7.2 question #55 exhibit 2

Options

  • AOn the receiver FortiGate, packet-de-duplication is enabled.
  • BThe ICMP echo request packets sent over T_INET_0_0 and T_MPLS_0 were dropped along the
  • CThe ICMP echo request packets received over T_INET_0_0 and T_MPLS_0 were offloaded to
  • DOn the sender FortiGate, duplication-max-num is set to 3.

How the community answered

(43 responses)
  • A
    72% (31)
  • B
    19% (8)
  • C
    9% (4)

Community Discussion

No community discussion yet for this question.
