NSE7_SDW-7.2 · Question #58

Refer to the exhibits. Exhibit A. Exhibit B. An administrator is testing application steering in SD-WAN. Before generating test traffic, the administrator collected the information shown in exhibit…

The correct answer is A. FortiGate did not refresh the routing information on the session after the application was detected. C. Full SSL inspection is not enabled on the matching firewall policy. See the full explanation below for the reasoning.

Question

Refer to the exhibits. Exhibit A. Exhibit B. An administrator is testing application steering in SD-WAN. Before generating test traffic, the administrator collected the information shown in exhibit A. After generating GoToMeeting test traffic, the administrator examined the respective traffic log on FortiAnalyzer, which is shown in exhibit B. The administrator noticed that the traffic matched the implicit SD-WAN rule, but they expected the traffic to match rule ID 1. Which two reasons explain why the traffic matched the implicit SD-WAN rule? (Choose two.)

Exhibits

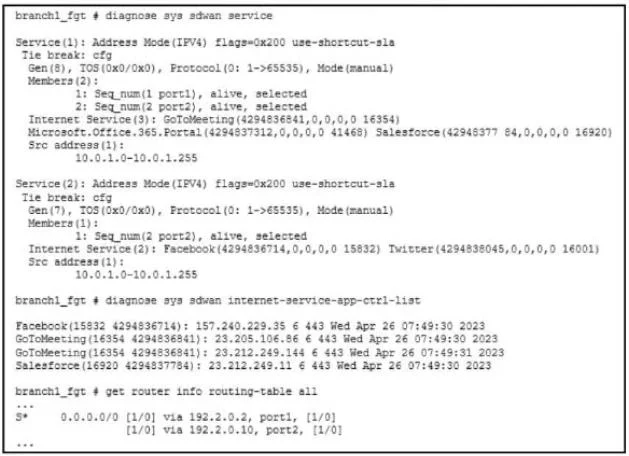

NSE7_SDW-7.2 question #58 exhibit 1

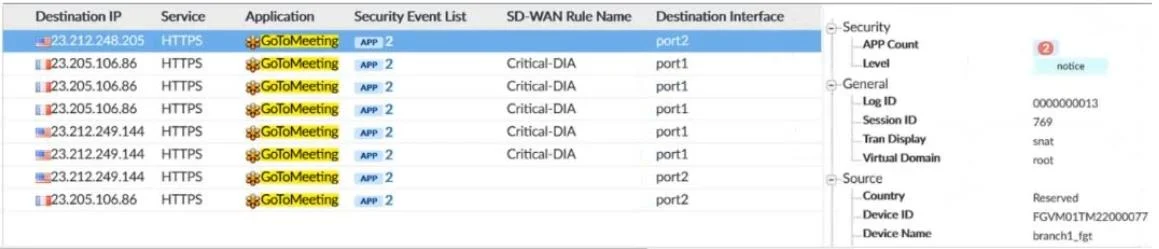

NSE7_SDW-7.2 question #58 exhibit 2

Options

  • AFortiGate did not refresh the routing information on the session after the application was detected.
  • BPort1 and port2 do not have a valid route to the destination.
  • CFull SSL inspection is not enabled on the matching firewall policy.
  • DThe session 3-tuple did not match any of the existing entries in the ISDB application cache.

How the community answered

(27 responses)
  • A
    74% (20)
  • B
    7% (2)
  • D
    19% (5)

Community Discussion

No community discussion yet for this question.
