Question

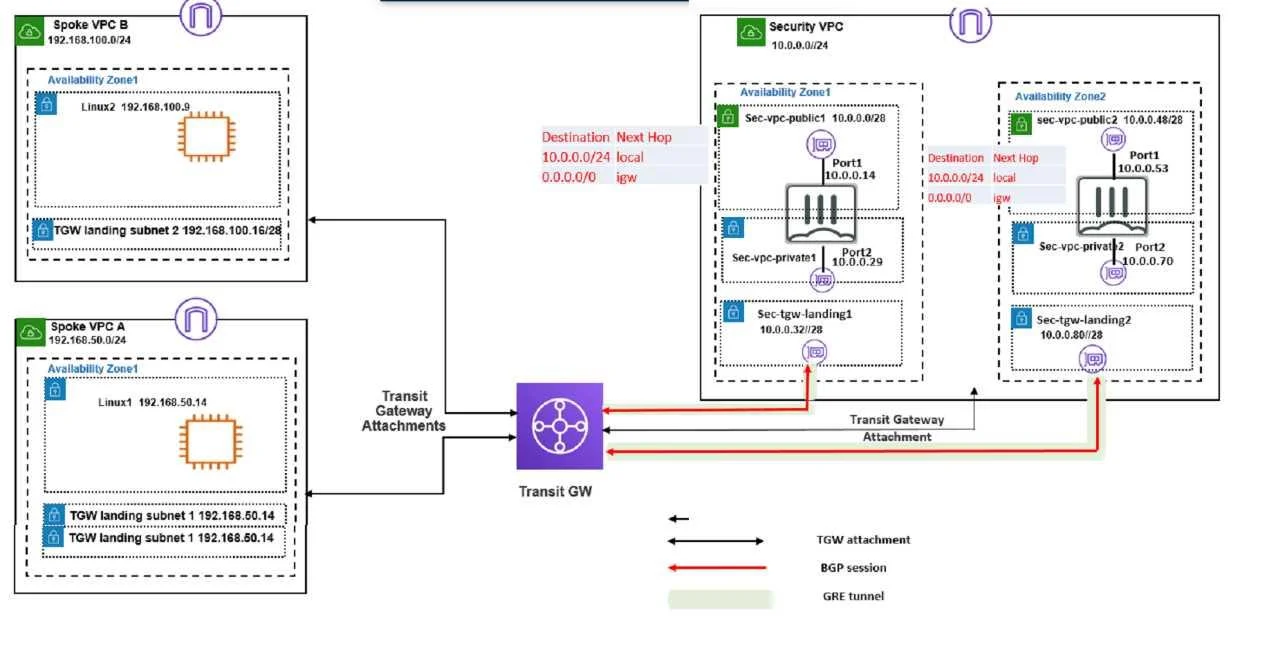

Refer to the exhibit. A customer has deployed an environment in Amazon Web Services (AWS) and is now trying to send outbound traffic from the Linux1 and Linux2 instances to the internet through the security VPC (virtual private cloud). The FortiGate policies are configured to allow all outbound traffic; however, the traffic is not reaching the FortiGate internal interface. Assume there are no issues with the Transit Gateway (TGW) configuration. Which two settings must the customer add to correct the issue? (Choose two.)
Exhibit
Options
- ABoth landing subnets in the spoke VPCs must have a 0.0.0.0/0 traffic route to the Internet
- BBoth landing subnets in the spoke VPCs must have a 0.0.0.0/0 traffic route to the TGW
- CBoth landing subnets in the security VPC must have a 0.0.0.0/0 traffic route to the FortiGate
- DThe four landing subnets in all the VPCs must have a 0.0.0.0/0 traffic route to the TGW
How the community answered
(54 responses)- A9% (5)
- B72% (39)
- D19% (10)
Explanation
The correct answer is B and C. Both landing subnets in the spoke VPCs must have a 0.0.0.0/0 traffic route to the TGW. Both landing subnets in the security VPC must have a 0.0.0.0/0 traffic route to the FortiGate port2. According to the AWS documentation for Transit Gateway, a transit gateway is a network transit hub that connects VPCs and on-premises networks. To send outbound traffic from the Linux instances to the internet through the security VPC, you need to do the following steps: In the main subnet routing table in the spoke VPCs, add a new route with destination 0.0.0.0/0, next hop TGW. This route directs all traffic from the Linux instances to the TGW, which can then forward it to the appropriate destination based on the TGW route table. In the main subnet routing table in the security VPC, add a new route with destination 0.0.0.0/0, next hop FortiGate port2. This route directs all traffic from the TGW to the FortiGate internal interface, where it can be inspected and allowed by the FortiGate policies.
