NSE6_SDW_AD-7.6 · Question #32
Refer to the exhibit. Which SD-WAN rule and interface uses FortiGate to steer the traffic from the LAN subnet 10.0.1.0/24 to the corporate server 10.2.5.254?
The correct answer is B. SD-WAN service rule 3 and interface HUB1-VPN3. First off, the traffic matches the SD-WAN rule with service ID 3. We can see that there is at least one valid route in the FIB, so the SD-WAN rule will be selected. Next, we see HUB1-VPN2 and HUB1-VPN3 have the same slamap value of 0x1 - therefore, they are equally valid…
Question
Refer to the exhibit. Which SD-WAN rule and interface uses FortiGate to steer the traffic from the LAN subnet 10.0.1.0/24 to the corporate server 10.2.5.254?

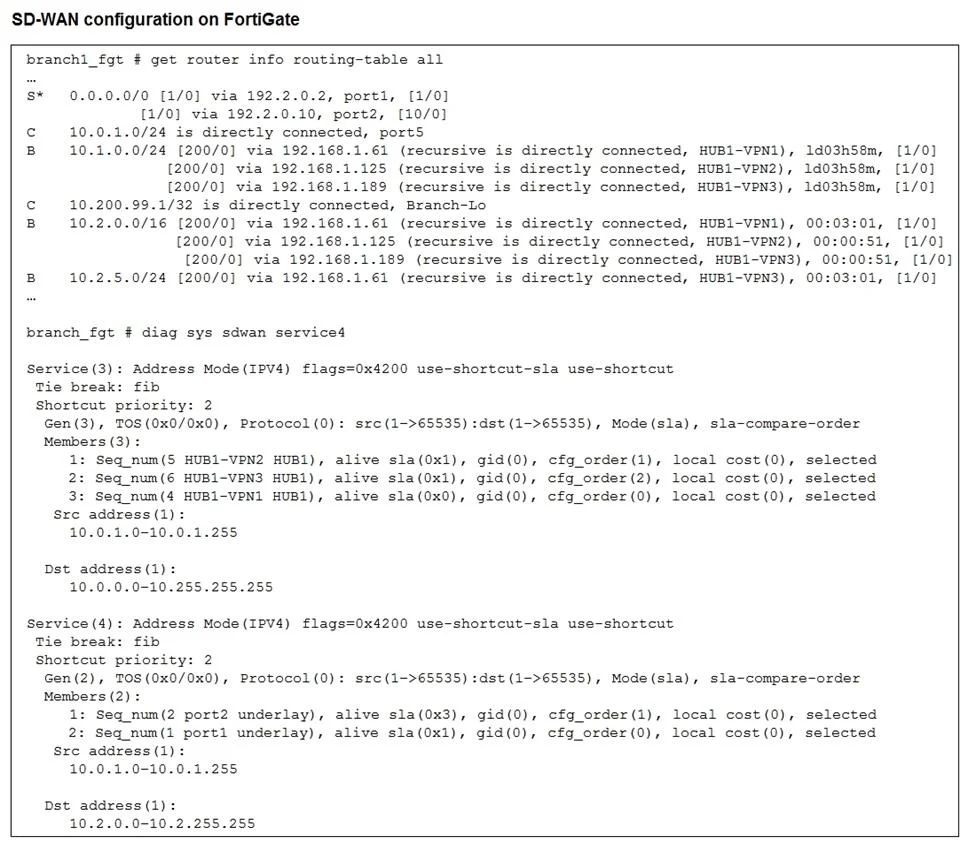

Exhibit
Options
- ASD-WAN service rule 3 and interface HUB1-VPN2.
- BSD-WAN service rule 3 and interface HUB1-VPN3.
- CSD-WAN service rule 4 and port1 or port2.
- DSD-WAN service rule 4 and interface port2.
How the community answered
(16 responses)- A13% (2)
- B56% (9)
- C6% (1)
- D25% (4)
Explanation
First off, the traffic matches the SD-WAN rule with service ID 3. We can see that there is at least one valid route in the FIB, so the SD-WAN rule will be selected. Next, we see HUB1-VPN2 and HUB1-VPN3 have the same slamap value of 0x1 - therefore, they are equally valid members to choose from, and a tiebreak occurs (since there is no load balancing configured). Looking at the routes, HUB1-VPN3 has a more SPECIFIC route (i.e. better route) and therefore, it wins the tiebreak.
