NSE6_SDW_AD-7.6 · Question #37
Refer to the exhibits. You connect to a device behind a branch FortiGate device and initiate a ping test. The device is part of the LAN subnet and its IP address is 10.0.1.101. Based on the…
The correct answer is D. port2. The ping target IP 157.240.19.35 matches an App Control entry for Facebook (ID 15832). According to the diagnose firewall route list output, this application is handled by vwl_service=2 (Non-Critical-DIA), which routes traffic via oif=4 (port2). Therefore, FortiGate steers the…
Question
Refer to the exhibits. You connect to a device behind a branch FortiGate device and initiate a ping test. The device is part of the LAN subnet and its IP address is 10.0.1.101. Based on the exhibits, which interface uses branch 1_fgt to steer the test traffic?

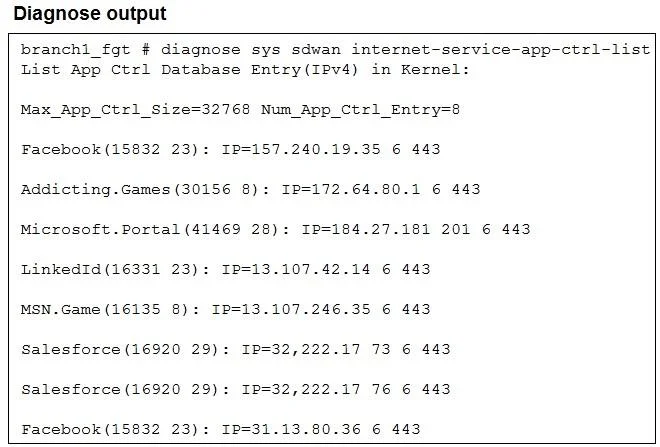

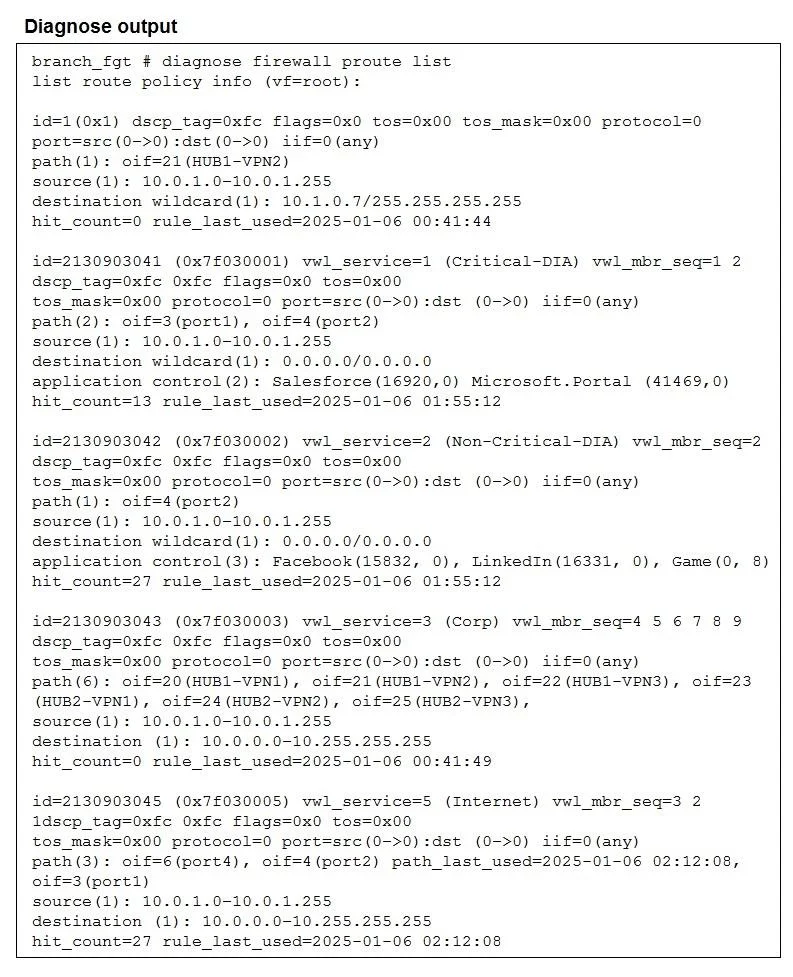

Exhibits
Options
- Aport4
- BHUB1-VPN1
- Cport1
- Dport2
How the community answered
(23 responses)- A4% (1)
- B26% (6)
- C13% (3)
- D57% (13)
Explanation
The ping target IP 157.240.19.35 matches an App Control entry for Facebook (ID 15832). According to the diagnose firewall route list output, this application is handled by vwl_service=2 (Non-Critical-DIA), which routes traffic via oif=4 (port2). Therefore, FortiGate steers the Facebook test traffic through port2.
Topics
Community Discussion
No community discussion yet for this question.
