NSE4_FGT-7.0 · Question #51

Refer to the exhibit. Given the interfaces shown in the exhibit. which two statements are true? (Choose two.)

The correct answer is A. port1-vlan1 and port2-vlan1 can be assigned in the same VDOM or to different VDOMs B. port1 is a native VLAN. The question pertains to FortiGate interface configurations, specifically regarding physical interfaces, VLAN sub-interfaces, and Virtual Domains (VDOMs).

Network Configuration

Question

Refer to the exhibit. Given the interfaces shown in the exhibit. which two statements are true? (Choose two.)

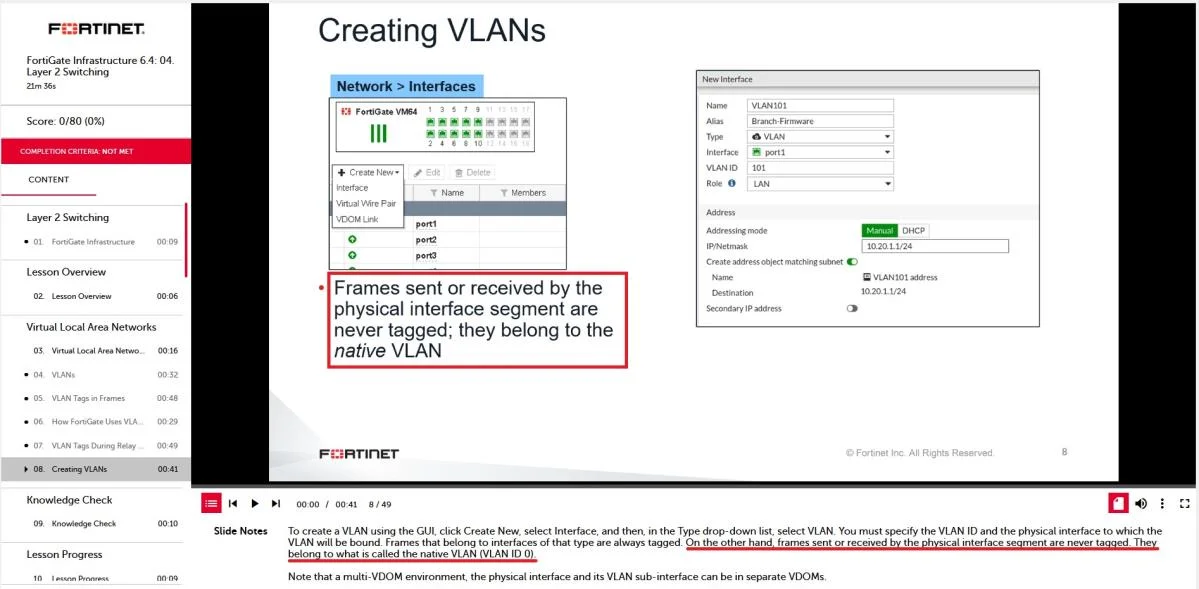

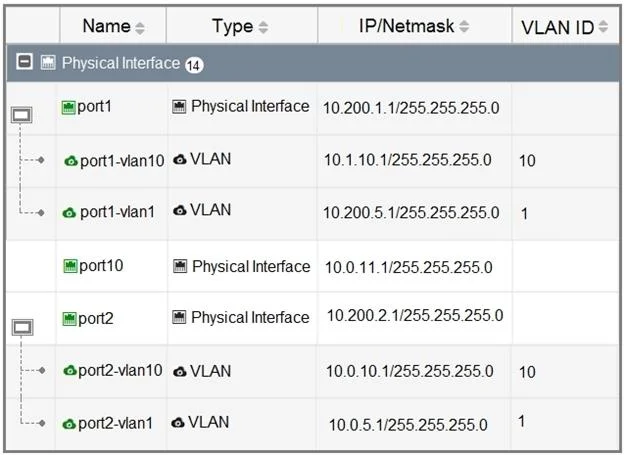

Exhibit

NSE4_FGT-7.0 question #51 exhibit

Options

  • Aport1-vlan1 and port2-vlan1 can be assigned in the same VDOM or to different VDOMs
  • Bport1 is a native VLAN.
  • Cport1-vlan10 and port2-vlan10 are part of the same broadcast domain.
  • DTraffic between port2 and port2-vlan1 is allowed by default.

How the community answered

(18 responses)
  • A
    83% (15)
  • C
    6% (1)
  • D
    11% (2)

Why each option

The question pertains to FortiGate interface configurations, specifically regarding physical interfaces, VLAN sub-interfaces, and Virtual Domains (VDOMs).

Aport1-vlan1 and port2-vlan1 can be assigned in the same VDOM or to different VDOMsCorrect

VLAN sub-interfaces like port1-vlan1 and port2-vlan1 are distinct logical entities that can be independently assigned to the same VDOM for shared routing contexts or to different VDOMs for multi-tenancy.

Bport1 is a native VLAN.Correct

When a VLAN sub-interface (e.g., port1-vlan1) is created on a physical port (e.g., port1), the physical port itself acts as the untagged or native VLAN for any traffic not explicitly tagged with a VLAN ID.

Cport1-vlan10 and port2-vlan10 are part of the same broadcast domain.

VLAN sub-interfaces on different physical ports (e.g., port1-vlan10 and port2-vlan10) are in separate broadcast domains unless explicitly bridged or routed between them.

DTraffic between port2 and port2-vlan1 is allowed by default.

Traffic between a physical interface (e.g., port2) and its own VLAN sub-interface (e.g., port2-vlan1) is not allowed by default and requires explicit firewall policies or routing configurations for communication.

Concept tested: FortiGate interfaces, VLANs, VDOMs, native VLANs

Source: https://docs.fortinet.com/document/fortigate/7.4.0/fortios-handbook/253683/physical-interfaces-and-vlan-subinterfaces

Topics

#VLANs#native VLAN#broadcast domain#VDOMs
