NSE4 · Question #464
In the debug command output shown in the exhibit, which of the following best described the MAC address 00:09:0f:69:03:7e ?
The correct answer is C. It is the MAC address of another network devices located in the same LAN segment as the. In FortiGate debug output, a MAC address that is not associated with the FortiGate's own interfaces or HA virtual MAC typically represents another networked device on the same local area network segment.
Question
In the debug command output shown in the exhibit, which of the following best described the MAC address 00:09:0f:69:03:7e ?

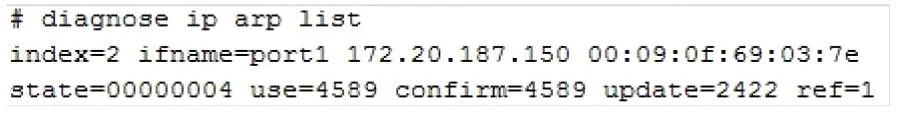

Exhibit
Options
- AIt is one of the secondary MAC addresses of the port1 interface.
- BIt is the primary MAC address of the port interface.
- CIt is the MAC address of another network devices located in the same LAN segment as the
- DIt is the HA virtual MAC address.
How the community answered
(26 responses)- A4% (1)
- B8% (2)
- C88% (23)
Why each option
In FortiGate debug output, a MAC address that is not associated with the FortiGate's own interfaces or HA virtual MAC typically represents another networked device on the same local area network segment.
Secondary MAC addresses are typically associated with virtual IPs or specific configurations on the FortiGate itself, not a random MAC appearing in general debug output unless explicitly configured.
If this were the primary MAC address of port1, the debug output would typically indicate it as such, or it would be a known MAC for the FortiGate interface, not an external device.
In network debug output, when a MAC address (like 00:09:0f:69:03:7e) appears in ARP exchanges or traffic flows that are neither the FortiGate's own physical interface MAC nor its HA virtual MAC (if applicable), it most likely identifies another networked device (e.g., a router, switch, or host) present on the same local area network segment connected to the FortiGate.
An HA virtual MAC address is used by the HA cluster for redundancy, but this specific MAC address is unlikely to be the virtual MAC unless explicitly shown as such in context, and virtual MACs follow specific patterns for FortiGates.
Concept tested: Interpreting network debug output (MAC addresses)
