NSE4 · Question #336
View the exhibit. Which statements about the exhibit are true? (Choose two.)
The correct answer is A. port1-VLAN10 and port2-VLAN10 can be assigned to different VDOMs. D. Broadcast traffic received in port1-VLAN10 will not be forwarded to port2-VLAN10. FortiGate VLAN sub-interfaces can belong to different VDOMs, and broadcast traffic is contained within its respective VLAN, preventing forwarding to other VLANs by default.
Question
View the exhibit. Which statements about the exhibit are true? (Choose two.)

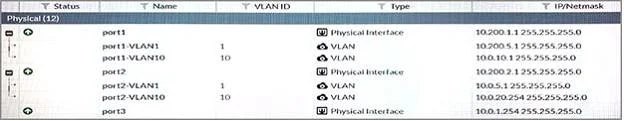

Exhibit
Options
- Aport1-VLAN10 and port2-VLAN10 can be assigned to different VDOMs.
- Bport1-VLAN1 is the native VLAN for the port1 physical interface.
- CTraffic between port1-VLAN1 and port2-VLAN1 is allowed by default.
- DBroadcast traffic received in port1-VLAN10 will not be forwarded to port2-VLAN10.
How the community answered
(66 responses)- A89% (59)
- B8% (5)
- C3% (2)
Why each option
FortiGate VLAN sub-interfaces can belong to different VDOMs, and broadcast traffic is contained within its respective VLAN, preventing forwarding to other VLANs by default.
FortiGate allows assigning individual VLAN interfaces to different VDOMs, providing logical segmentation and independent network management for each virtual domain.
VLAN 1 is not automatically designated as the native VLAN on a FortiGate; the native VLAN is determined by the switch port configuration that the FortiGate connects to, and untagged traffic is typically associated with it.
Traffic between different VLAN interfaces on a FortiGate, even with the same VLAN ID on different physical ports, is blocked by default and requires explicit firewall policies for routing to occur.
VLANs act as separate broadcast domains, meaning broadcast traffic originating within port1-VLAN10 will be contained within that specific VLAN and will not be forwarded to other distinct VLANs like port2-VLAN10 by default.
Concept tested: FortiGate VLANs, VDOMs, and traffic segmentation
Source: https://docs.fortinet.com/document/fortigate/7.4.0/administration-guide/331398/understanding-vdoms
