SIMULATION Users are unable to access files on their department share located on file server 2. The network administrator has been tasked with validating routing between networks hosting workstation…

This simulation involves troubleshooting routing issues between a workstation and a file server by examining router outputs and configuring solutions.

Submitted by lucia.co· Mar 6, 2026Network Troubleshooting

Question

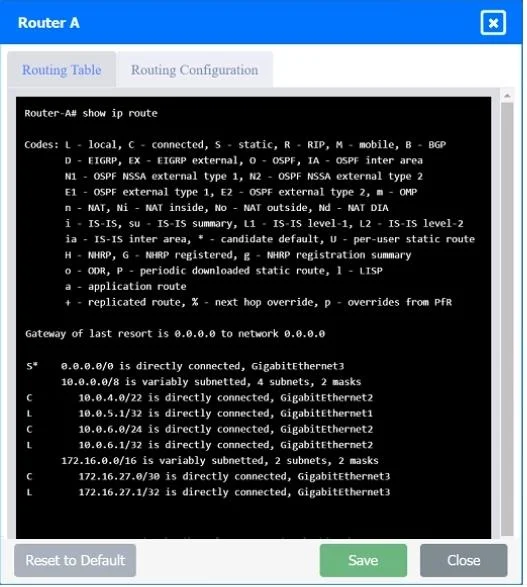

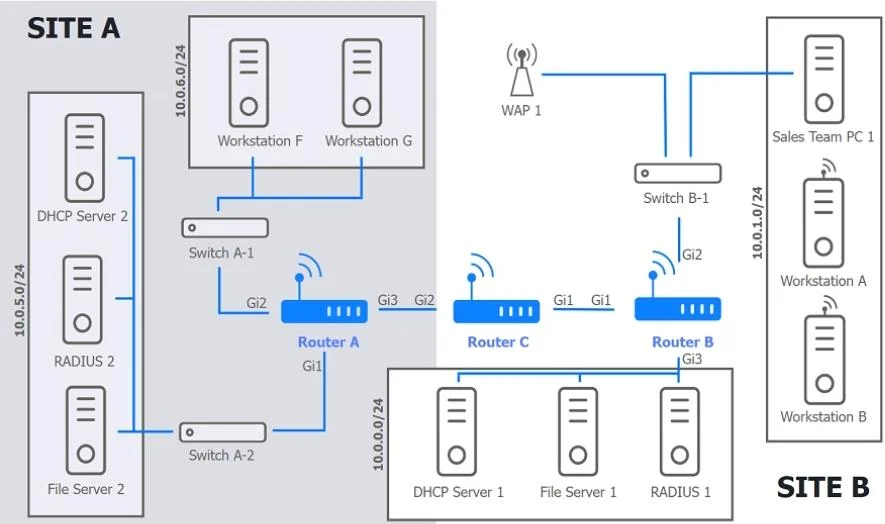

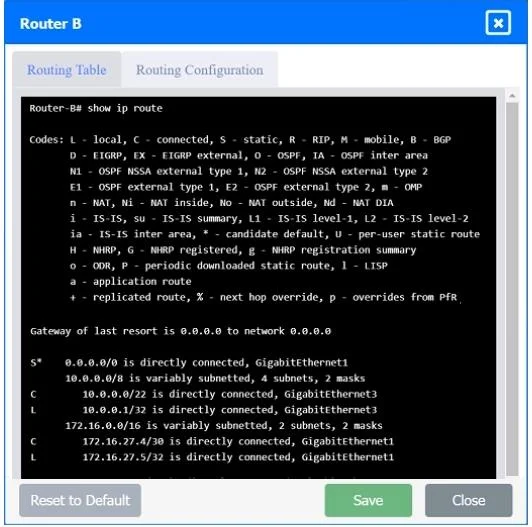

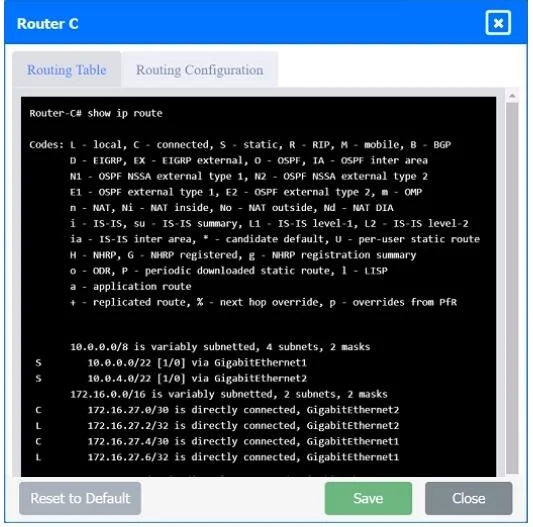

SIMULATION Users are unable to access files on their department share located on file server 2. The network administrator has been tasked with validating routing between networks hosting workstation A and file server 2. INSTRUCTIONS Click on each router to review output, identify any issues, and configure the appropriate solution. If at any time you would like to bring back the initial state of the simulation, please click the Reset All button. Answer:

Exhibits

Explanation

This simulation involves troubleshooting routing issues between a workstation and a file server by examining router outputs and configuring solutions.

Concept tested. IP routing troubleshooting and configuration

Reference. https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_pi/command/iproute_pi-cr-book/iproute-pi-cr-d1.html#wp4152063
