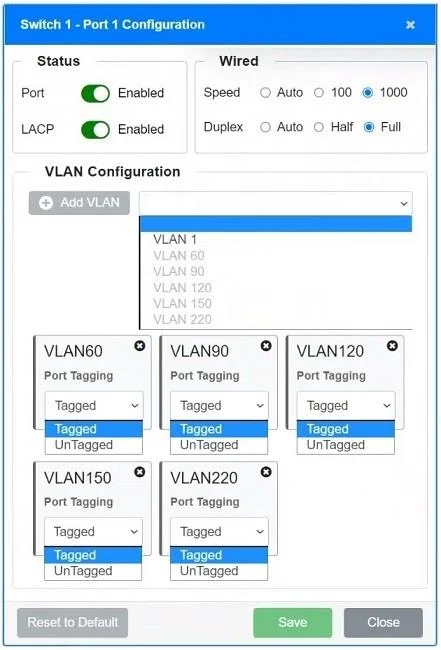

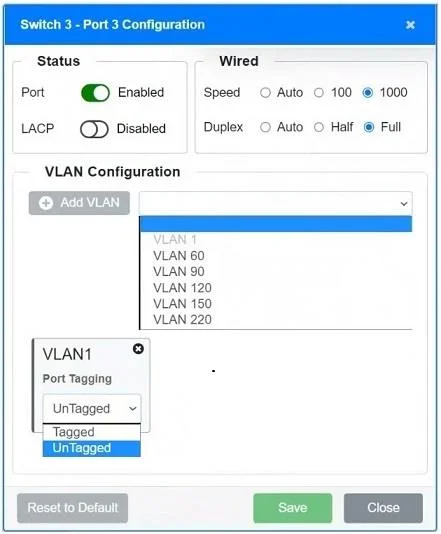

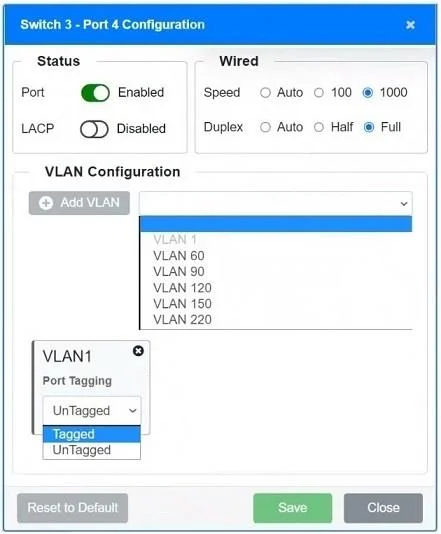

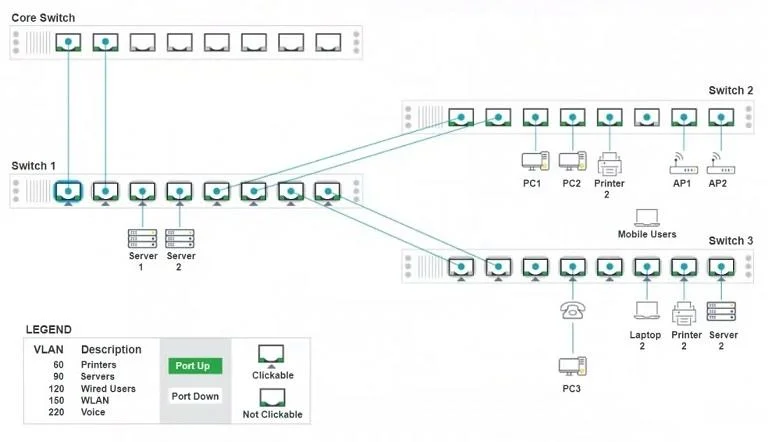

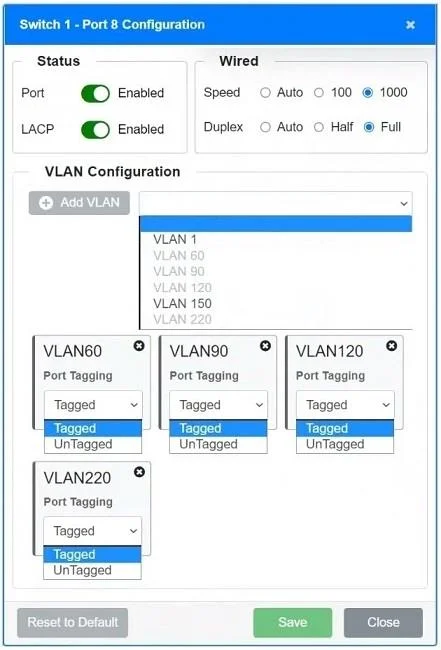

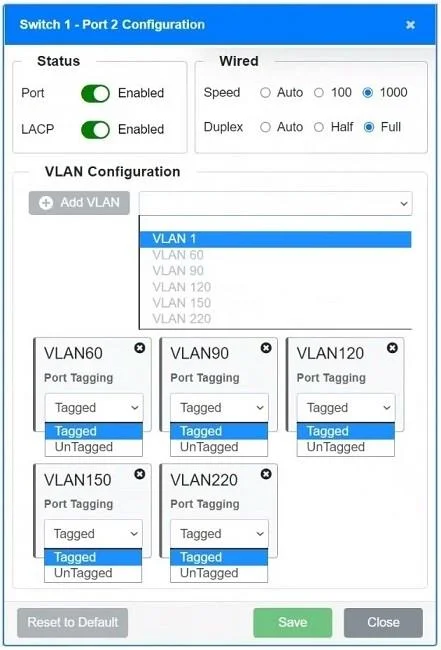

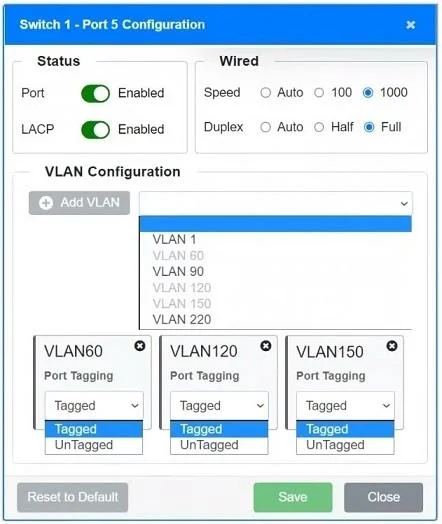

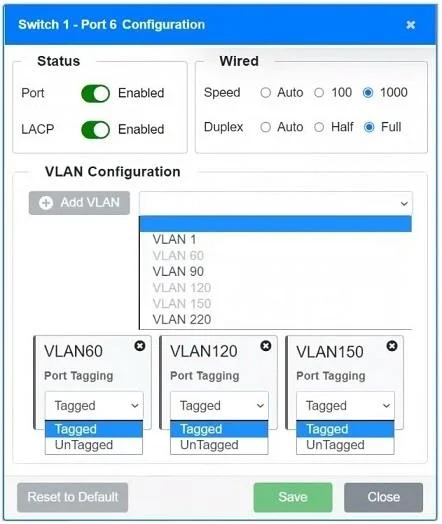

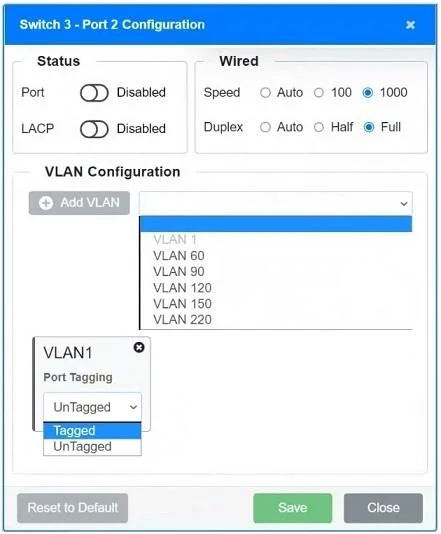

SIMULATION A network technician replaced a switch and needs to reconfigure it to allow the connected devices to connect to the correct networks. INSTRUCTIONS Click on the appropriate port(s) on Switch 1 and Switch 3 to verify or reconfigure the correct settings:
- Ensure each device accesses only its correctly associated network
- Disable all unused switch ports
- Require fault-tolerant connections between the switches
- Only make necessary changes to complete the above requirements
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button. Answer:
Exhibits
Explanation
The task involves reconfiguring a switch to ensure proper device network access, disable unused ports, and establish fault-tolerant inter-switch connections.
Concept tested. Switch port configuration, VLANs, and EtherChannel
