Referring to the exhibit, which two statements are correct? (Choose two.)

Question

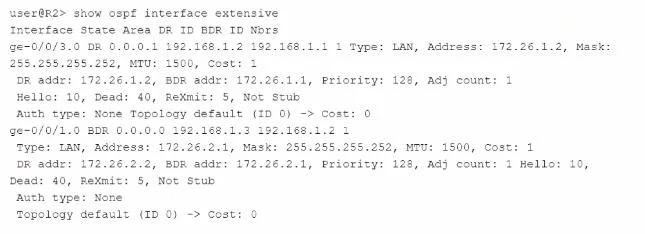

Exhibit

Options

• AThe OSPF Interfaces are configured as point-to-point.
• BThe ge-0/0/1.0 Interface is configured as passive.
• CThe R2 device is shown as having interfaces in two different OSPF areas (Area 0 and another
• DThe OSPF hello and dead intervals are set to their default values of 10 and 40 seconds,

• A
  6% (2)
• B
  13% (4)
• C
  81% (25)

Explanation

You can see area 0.0.0.1 set for one interface and area 0.0.0.0 for the other interface. This means the router communicates in the backbone and area 1, thus it is an ABR. Default hello timer and dead intervals are configured hello-interval--Specifies the length of time, in seconds, before the routing device sends a hello packet out of an interface. By default, the routing device sends hello packets every 10 seconds. The range is from 1 through 255 seconds. dead-interval--Specifies the length of time, in seconds, that the routing device waits before declaring that a neighboring routing device is unavailable. This is an interval during which the routing device receives no hello packets from the neighbor. By default, the routing device waits 40 seconds (four times the hello interval). The range is 1 through 65,535 seconds. area not specified), which makes it an Area Border Router (ABR).
