HPE7-A08 · Question #245
You have recently configured OSPF between two switches and verified the output of the below command: After a few days, another engineer changed the configuration, and now the output is below. What…
The correct answer is D. The network type has been changed from broadcast to point-to-point. On a broadcast OSPF network, the neighbor state includes DR/BDR roles and displays a priority value due to the DR election process. After changing the interface network type to point-to-point, there is no DR/BDR election, so the neighbor state shows only FULL and the priority…
Question

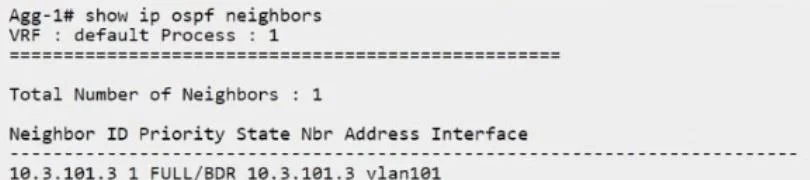

You have recently configured OSPF between two switches and verified the output of the below command:

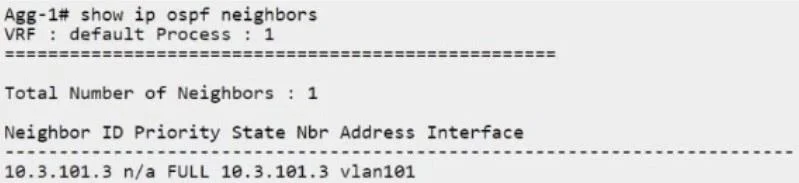

After a few days, another engineer changed the configuration, and now the output is below. What is the reason for this?
Exhibits
Options
- ALoopback addresses have been configured as router IDs.
- BVLAN interfaces have been assigned to OSPF area 0.
- CThe OSPF area type has been changed to stub on both devices.
- DThe network type has been changed from broadcast to point-to-point.
How the community answered
(27 responses)- A30% (8)
- B11% (3)
- C7% (2)
- D52% (14)
Explanation
On a broadcast OSPF network, the neighbor state includes DR/BDR roles and displays a priority value due to the DR election process. After changing the interface network type to point-to-point, there is no DR/BDR election, so the neighbor state shows only FULL and the priority appears as
Topics
Community Discussion
No community discussion yet for this question.
