HPE7-A08 · Question #222
Refer to the exhibit. A senior network architect has created the configuration above. You are implementing the set up in building A and B. The actual fiber distance between the building locations…
The correct answer is C. Change the 10SR optics to 10SR / MMF C-Class XCVR OM4 to support up to 400m / 1312ft. With a fiber distance of 350 m over OM4, the standard 10GBASE-SR optics used in the initial design may only be specified up to 300 m. For 10-Gbps links over OM4 at 350 m, you must use the 10GBASE-SR MMF C-Class transceivers, which are specified to support distances up to 400 m…
Question

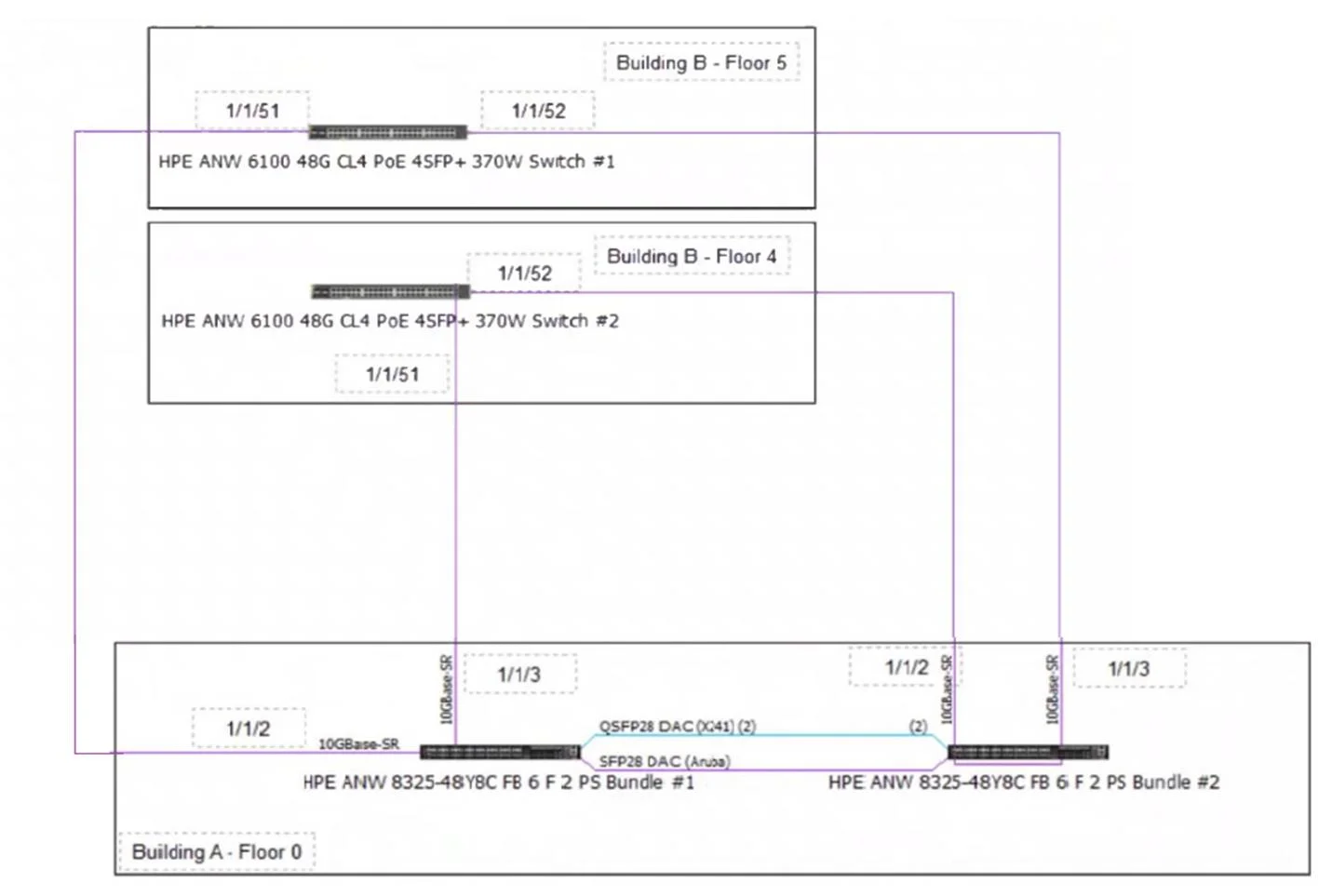

Refer to the exhibit. A senior network architect has created the configuration above. You are implementing the set up in building A and B. The actual fiber distance between the building locations is: 350m /1,148ft utilizing OM4 cabling. What needs to be changed on the configuration based on the actual environmental conditions to complete the installation?
Exhibit
Options
- AChange the 10SR optics to 25LR optics to support distances over 300m / 984ft
- BChange the 10SR optics to 10LR optics to support distances over 300m / 984ft
- CChange the 10SR optics to 10SR / MMF C-Class XCVR OM4 to support up to 400m / 1312ft
- DChange the 10SR optics to 25SR optics to support distances over 300m / 984ft
How the community answered
(52 responses)- A6% (3)
- B15% (8)
- C75% (39)
- D4% (2)
Explanation
With a fiber distance of 350 m over OM4, the standard 10GBASE-SR optics used in the initial design may only be specified up to 300 m. For 10-Gbps links over OM4 at 350 m, you must use the 10GBASE-SR MMF C-Class transceivers, which are specified to support distances up to 400 m, ensuring the link operates within supported limits.
Topics
Community Discussion
No community discussion yet for this question.
