HPE7-A01 · Question #74
Drag and Drop Question Select the Aruba stacking technology matching each option (Options may be used more than once or not at all.) Answer:
The correct answer is VSF; VSX; VSX; VSF; VSF. Important Note The question as provided is incomplete - the five statements/descriptions for positions 1–5 are missing. Only the answer labels are shown. Without knowing what each numbered item says, I cannot explain why each specific position maps to VSF or VSX. That said, here
Question
Drag and Drop Question Select the Aruba stacking technology matching each option (Options may be used more than once or not at all.) Answer:

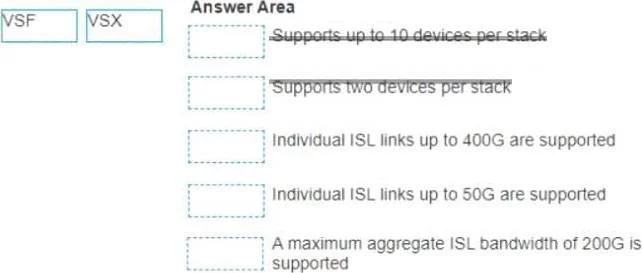

Exhibit
Answer Area
Drag items
Correct arrangement
- VSF
- VSX
- VSX
- VSF
- VSF
Explanation
Important Note
The question as provided is incomplete - the five statements/descriptions for positions 1–5 are missing. Only the answer labels are shown. Without knowing what each numbered item says, I cannot explain why each specific position maps to VSF or VSX.
That said, here is what you need to know to answer any VSF vs. VSX matching question correctly:
VSF (Virtual Switching Framework)
| Characteristic | Detail |
|---|---|
| Switch count | Up to 8 switches per stack |
| Control plane | Single, unified control plane |
| Management | Single IP address for the whole stack |
| Topology | Ring or chain (uses stacking ports) |
| Hardware | Requires same model/generation |
| Roles | Commander, Standby, Member |
| Platform | ArubaOS-Switch (2930F, 3810M, 5400R, etc.) |
| Use case | Campus access/distribution stacking |
VSX (Virtual Switching Extension)
| Characteristic | Detail |
|---|---|
| Switch count | Exactly 2 switches |
| Control plane | Independent per switch (active-active) |
| Management | Separate IP per switch |
| Topology | ISL + keepalive link between peers |
| Hardware | Can be different models |
| Redundancy | Active-Active (both forward traffic) |
| Platform | ArubaOS-CX (6300, 6400, 8325, 8400, etc.) |
| Use case | High-availability aggregation/core with MCLAG |
Key Distinguishers for Exam Questions
→ Answer VSF when the statement mentions:
- More than 2 switches in the stack
- Single management IP / single logical switch
- Commander/Member roles
- Stacking cables or stacking ports
- ArubaOS-Switch platforms
→ Answer VSX when the statement mentions:
- Active-Active forwarding
- MCLAG (Multi-Chassis LAG)
- ISL or keepalive link
- Independent control planes
- ArubaOS-CX platforms
- Only 2 peers/switches
Common Misconceptions
- "VSX is just VSF with 2 switches" - Wrong. VSX has a fundamentally different architecture (independent control planes, active-active). VSF merges switches into one logical device.
- "Both require identical hardware" - Only VSF does. VSX peers can differ.
- "VSX replaces VSF" - Not exactly; they serve different platforms and use cases. VSF is for ArubaOS-Switch; VSX is for ArubaOS-CX.
If you can share the actual five statements, I can explain each placement precisely.
