Drag and Drop Question Match the appropriate QoS concept with its definition. (Options may be used more than once or not at all.) Answer:

Question

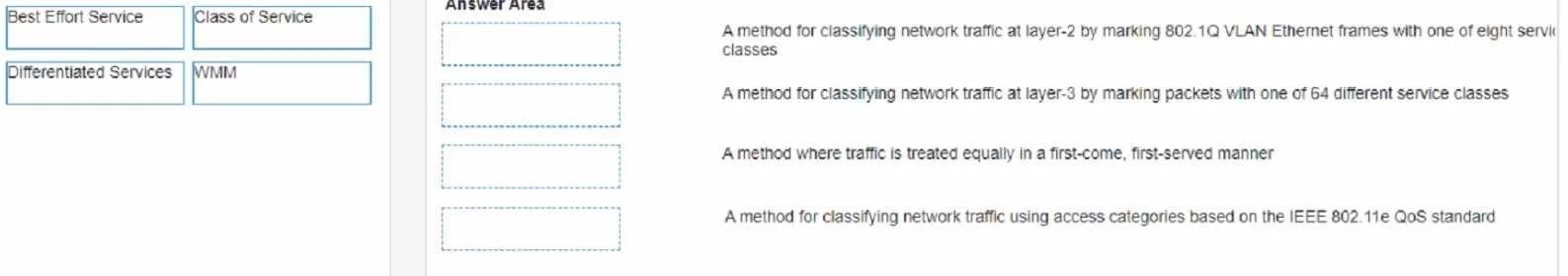

Exhibit

Answer Area

Explanation

QoS Concepts: Drag-and-Drop Explanation

Note: The question as posted is missing the definition statements (the drop targets). The arrangement below is explained based on the standard definitions these concepts map to in networking certifications (CompTIA Network+, CWNA, etc.).

Position 1 - Class of Service (CoS)

What it is: A Layer 2 QoS marking mechanism defined by IEEE 802.1p. Uses a 3-bit field in the 802.1Q VLAN tag to assign 8 priority levels (0–7) to Ethernet frames.

Key detail: CoS operates at the data link layer - it marks frames, not packets. It has no meaning once traffic leaves a Layer 2 domain.

Common mistake: Confusing CoS with DSCP. CoS = Layer 2 (frames). DSCP = Layer 3 (packets).

Position 2 - Differentiated Services (DiffServ)

What it is: A Layer 3 QoS framework (RFC 2474/2475). Uses the DSCP (Differentiated Services Code Point) field - 6 bits in the IPv4/IPv6 header - to classify traffic into service classes (e.g., EF for voice, AF for video).

Key detail: DiffServ replaced the older IntServ (RSVP) model. It scales well because routers make per-hop forwarding decisions based on DSCP markings rather than maintaining per-flow state.

Common mistake: Thinking DiffServ guarantees bandwidth. It doesn't - it only classifies and prioritizes. Guarantees require additional scheduling mechanisms (e.g., CBWFQ).

Position 3 - Best Effort Service

What it is: The default internet delivery model - no QoS, no prioritization, no guarantees. All packets are treated equally; delivery depends entirely on available bandwidth.

Key detail: This is the baseline from which all other QoS models are measured. If no QoS policy is applied, traffic is best effort by definition.

Common mistake: Assuming best effort means poor quality. Under normal, uncongested conditions it works fine - it only degrades under load since there's no mechanism to protect latency-sensitive traffic.

Position 4 - WMM (Wi-Fi Multimedia)

What it is: A wireless QoS certification standard based on IEEE 802.11e. Defines 4 Access Categories (ACs):

Key detail: WMM uses EDCA (Enhanced Distributed Channel Access) to give higher-priority traffic shorter wait times before transmitting. Required for WPA2/WPA3 certification.

Common mistake: Assuming WMM provides the same guarantees as wired QoS. Wireless is a shared, contention-based medium - WMM improves prioritization but cannot guarantee latency the way wired QoS can.

Summary Table
