HP
HPE6-A75 · Question #38
Refer to the exhibit. A company has attempted to implement OSPF without success. The devices in Area I need to be able to reach Area 2. Routes should be aggregated for advertisement in other areas…
The correct answer is A. Change Area 3 to Area 0; remove Area 1 from Switch-2 and Area 2 from Switch-1. See the full explanation below for the reasoning.
Question
Refer to the exhibit. A company has attempted to implement OSPF without success. The devices in Area I need to be able to reach Area 2. Routes should be aggregated for advertisement in other areas. What must be changed to meet these requirements?

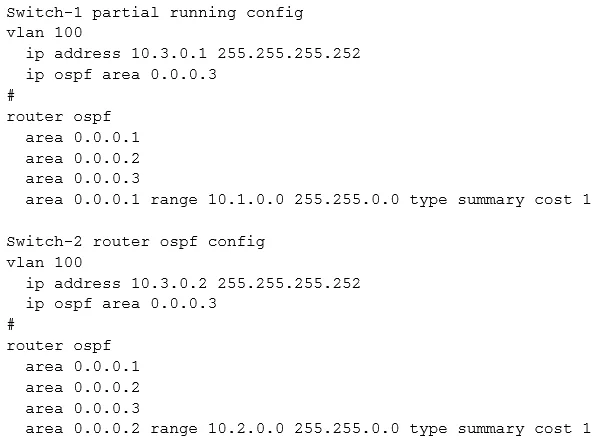

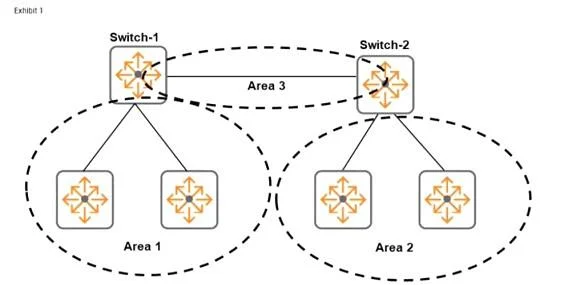

Exhibits
Options
- AChange Area 3 to Area 0; remove Area 1 from Switch-2 and Area 2 from Switch-1.
- BAdd the 10.2.0.0/16 range on Swttch-1 and the 10.1.0.0/16 range on Switch-2.
- CAdd Area 1 and Area 2 on VIAN 100 on both Switch-1 and Switch-2. Remove Area 3.
- DMove the 10.1.0.0/16 range to Area 2 on Switch-1 and the 10.2.0.0/16rangetoArea 1 onSwitch-2.
How the community answered
(28 responses)- A79% (22)
- B4% (1)
- C11% (3)
- D7% (2)
Community Discussion
No community discussion yet for this question.
