H31-161 Question #41: Real Exam Question with Answer & Explanation

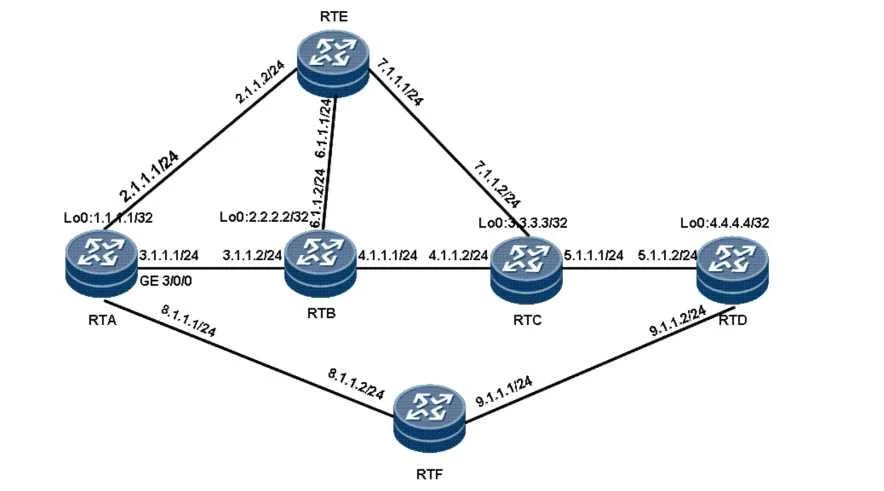

All nodes in the topology belong to the same IGP area. They can learn routers from each other and have the TE capability. The tunnels configured below can be Up. Refer to the following configuration of RTA,Which of the following statements are true? # mpls lsr-id 1.1.1.1 mpls mpls te mpls rsvp-te mpls te cspf # explicit-path pri-path next hop 3.1.1.2 next hop 4.1.1.2 next hop 5.1.1.2 # explicit-path bypass-1 next hop 2.1.1.2next hop 6.1.1.1 # explicit-path bypass-2 next hop 2.1.1.2 next hop 7.1.1.2 # explicit-path bypass-3 next hop 8.1.1.2 next hop 9.1.1.2 # interface Tunnel1/0/0 ip address unnumbered interface LoopBack0 tunnel-protocol mpls te destination 4.4.4.4 mpls te tunnel-id 100 mpls te record-route label mpls te path explicit-path pri-path mpls te fast-reroute mpls te commit # interface Tunnel2/0/0 ip address unnumbered interface LoopBack0 tunnel-protocol mpls te destination 2.2.2.2 mpls te tunnel-id 101 mpls te record-route label mpls te path explicit-path bypass-1 mpls te bypass-tunnel mpls te protected-interface GigabitEthernet 3/0/0 mpls te commit # interface Tunnel2/0/1 ip address unnumbered interface LoopBack0 tunnel-protocol mpls te destination 3.3.3.3 mpls te tunnel-id 102 mpls te record-route label mpls te path explicit-path bypass-2 mpls te bypass-tunnel mpls te protected-interface GigabitEthernet 3/0/0 mpls te commit # interface Tunnel2/0/2ip address unnumbered interface LoopBack0 tunnel-protocol mpls te destination 4.4.4.4 mpls te tunnel-id 103 mpls te record-route label mpls te path explicit-path bypass-3 mpls te bypass-tunnel mpls te protected-interface GigabitEthernet 3/0/0 mpls te commit #
