Huawei
H31-161 · Question #23
As shown in the figure, one enterprise has VPN A, the other has VPN B, and the two VPNs each have two CEs. The following requirements need to be met.VPNA-CE 1 can interwork with VPNA- CE 2…
The correct answer is A. VCID1 = 2, VCID2 = 2, VCID3 = 2, VCID4 = 2 C. VCID1 = 1, VCID2 = 2, VCID3 = 1, VCID4 = 2. See the full explanation below for the reasoning.
Question
As shown in the figure, one enterprise has VPN A, the other has VPN B, and the two VPNs each have two CEs. The following requirements need to be met.VPNA-CE 1 can interwork with VPNA- CE 2. 2>VPNB-CE 1 can interwork with VPNB-CE 2. The figure shows the types of links between CEs and PEs and the VC IDs used in Martini mode. Which of the following VC ID configurations are correct?

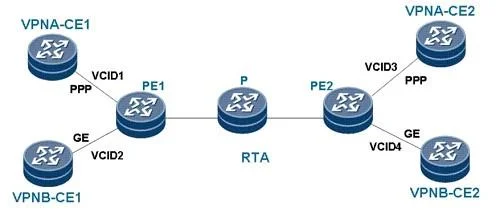

Exhibit
Options
- AVCID1 = 2, VCID2 = 2, VCID3 = 2, VCID4 = 2
- BVCID1 = 1, VCID2 = 2, VCID3 = 3, VCID4 = 4
- CVCID1 = 1, VCID2 = 2, VCID3 = 1, VCID4 = 2
- DVCID1 = 1, VCID2 = 1, VCID3 = 2, VCID4 = 2
How the community answered
(15 responses)- A73% (11)
- B20% (3)
- D7% (1)
Community Discussion
No community discussion yet for this question.
