Huawei
H31-161 · Question #135
Exhibit: As shown in the figure, complex traffic classification is configured for RTA's upstream GigabitEthernet 1/0/0. The QoS is configured as follows: A tester sends TCP packets from GE 1/1 to GE…
The correct answer is B. DSCP values of sent packets are not 10. See the full explanation below for the reasoning.
Question

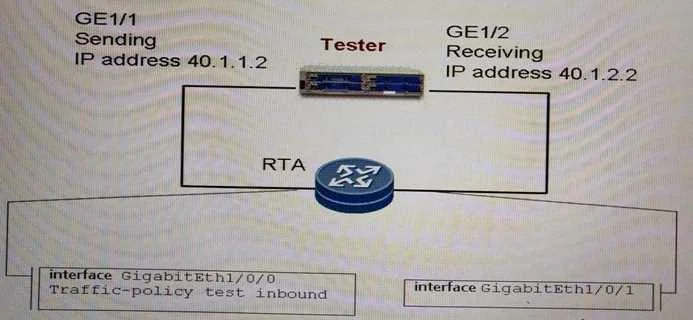

Exhibit:

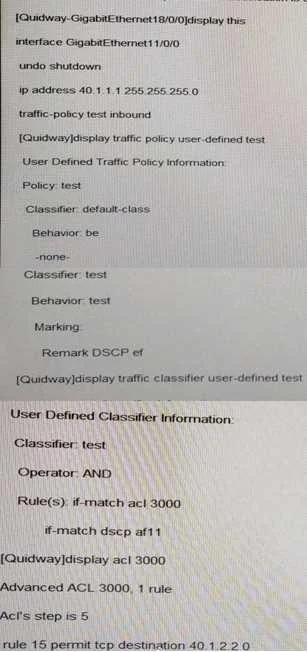

As shown in the figure, complex traffic classification is configured for RTA's upstream GigabitEthernet 1/0/0. The QoS is configured as follows:
A tester sends TCP packets from GE 1/1 to GE 1/2 at 40 1.2.2 IF DSCP values of packets GE receives are not 46, what are the possible causes?
Exhibits
Options
- AThe default mapping from the EF value to the DDCP value is modified
- BDSCP values of sent packets are not 10.
- CThe qos phb command is enabled on RTA's GigabitEthernet1/0/0.
- DSTC is disabled at RTA's GigabitEthernet 1/0/0.
How the community answered
(29 responses)- A3% (1)
- B76% (22)
- C7% (2)
- D14% (4)
Community Discussion
No community discussion yet for this question.
