H12-831_V1.0 · Question #180
In the network shown in the figure, R1, R2, R4, and R5 run IS-IS, and the area number is 49.0001. R3 and R6 run IS-IS, and the area number is 49.0002. Within AS 65000, R1, R3, R4, and R6 all…
The correct answer is A. The traffic path from R1 to 192.168.2.0/24 may be R1-R2-R3 B. The traffic path from R3 to 192.168.1.0/24 may be R3-R5-R4 C. The traffic path from R3 to 192.168.1.0/24 may be R3-R2-R1 D. The traffic path from R1 to 192.168.2.0/24 may be R1-R5-R3. See the full explanation below for the reasoning.
Question

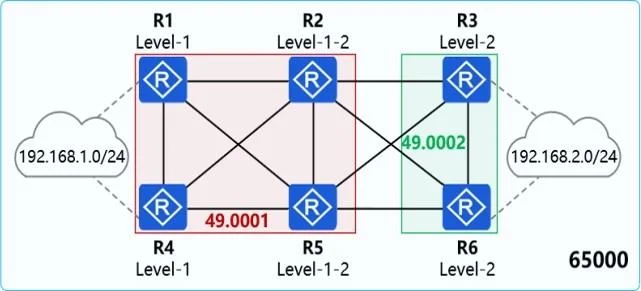

In the network shown in the figure, R1, R2, R4, and R5 run IS-IS, and the area number is 49.0001. R3 and R6 run IS-IS, and the area number is 49.0002. Within AS 65000, R1, R3, R4, and R6 all establish IBGP neighbor relationships with R2 and R5, of which R2 and R5 are RRs, and R1, R4, R3, and R6 are clients. IBGP neighbor relationships are all established using the Loopback0 interface. The IP address of the Loopback0 interface of each device is 10.0.X.X/32, and the Router ID is 10.0.X.X, where X is the device number. R1 and R4 introduce the external network 192.168.1.0/24 into BGP through the import method, and R3 and R6 introduce the external network 192.168.2.0/24 into BGP through the import method. Which of the following descriptions are correct by default? (Multiple choice)
Exhibit
Options
- AThe traffic path from R1 to 192.168.2.0/24 may be R1-R2-R3
- BThe traffic path from R3 to 192.168.1.0/24 may be R3-R5-R4
- CThe traffic path from R3 to 192.168.1.0/24 may be R3-R2-R1
- DThe traffic path from R1 to 192.168.2.0/24 may be R1-R5-R3
How the community answered
(31 responses)- A100% (31)
Community Discussion
No community discussion yet for this question.
