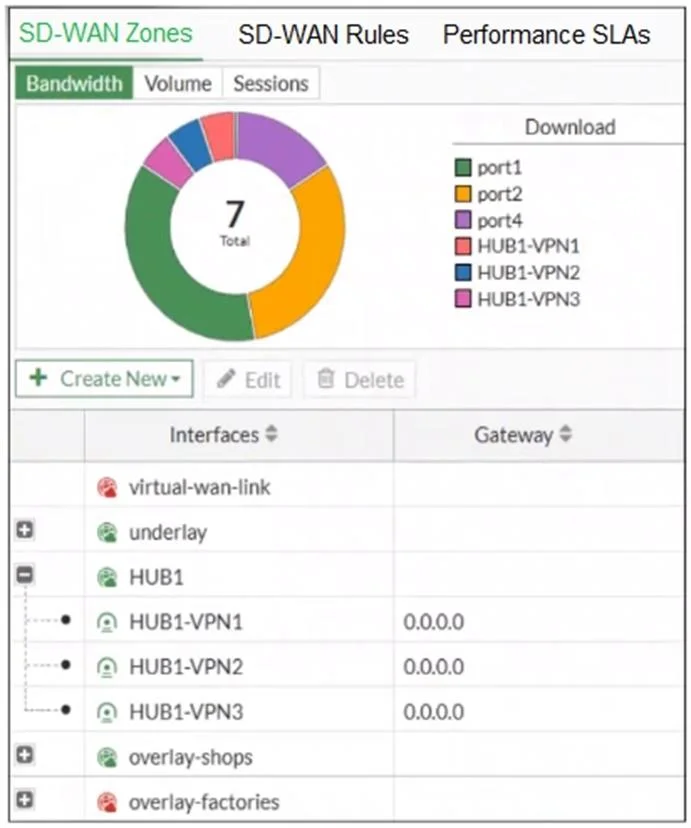

Refer to the exhibit, which shows an SD-WAN zone configuration on the FortiGate GUI. What can you conclude about the zone and member configuration on this device?

The correct answer is D. You can move HUB1-VPN3 from the HUB1 zone to the overlay-shops zone. The VPN members under HUB1 (HUB1-VPN1, HUB1-VPN2, HUB1-VPN3) are all SD-WAN interfaces that can be reassigned to a different zone, such as overlay-shops. FortiGate allows reassigning members between zones.

SD-WAN Fundamentals

Question

Exhibit

Options

AThe underlay zone contains three members.
BYou can delete the virtual-wan-link zones.
CThe overlay-factories zone contains no member.
DYou can move HUB1-VPN3 from the HUB1 zone to the overlay-shops zone.

How the community answered

(63 responses)

A
3% (2)
B
16% (10)
C
8% (5)
D
73% (46)

Explanation

The VPN members under HUB1 (HUB1-VPN1, HUB1-VPN2, HUB1-VPN3) are all SD-WAN interfaces that can be reassigned to a different zone, such as overlay-shops. FortiGate allows reassigning members between zones.

Topics

#SD-WAN zones#zone members#overlay zone#zone management

Community Discussion

No community discussion yet for this question.
