FCSS_NST_SE-7.6 · Question #65
Refer to the exhibit, which shows the modified output of the routing kernel. Which statement is true?
The correct answer is D. The BGP route to 10.0.4.0/24 is not in the forwarding information base. The BGP‑learned path to 10.0.4.0/24 carries a higher administrative distance (200) than the OSPF external route (110), so it isn't selected into the FIB (no "*" next to the BGP entry).
Troubleshoot Routing Issues
Question
Refer to the exhibit, which shows the modified output of the routing kernel. Which statement is true?

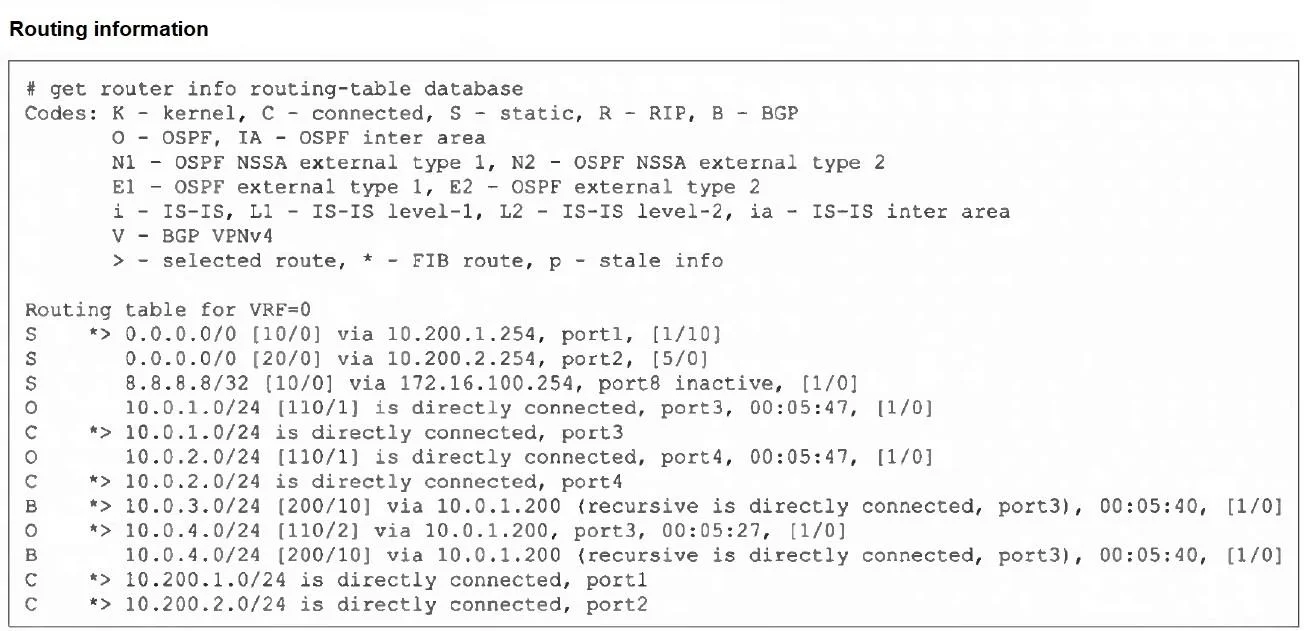

Exhibit
Options
- AThe egress interface associated with static route 8.8.8.8/32 is administratively up.
- BThe default static route through 10.200.1.254 is not in the forwarding information base.
- CThe default static route through port2 is in the forwarding information base.
- DThe BGP route to 10.0.4.0/24 is not in the forwarding information base.
How the community answered
(32 responses)- A6% (2)
- B19% (6)
- C13% (4)
- D63% (20)
Explanation
The BGP‑learned path to 10.0.4.0/24 carries a higher administrative distance (200) than the OSPF external route (110), so it isn't selected into the FIB (no "*" next to the BGP entry).
Topics
#FIB#routing kernel#static route#BGP route
