Refer to the exhibits. A set of SSID profiles has been configured on FortiManager, and an AP profile has been assigned to a group of AP managed by FortiGate. However, none of the designated SSIDs…

Question

Exhibits

Options

• AAdjust the AP profile to ensure all SSIDs are configured in a supported mode, either bridge or
• BChange the AP profile to use a platform that supports the configured mix of SSIDs.
• CChoose Manual in the SSIDs setting and select the SSIDs to broadcast.
• DSet the Transmit Power Mode to Auto.

• A
  2% (1)
• B
  6% (3)
• C
  83% (43)
• D
  10% (5)

Explanation

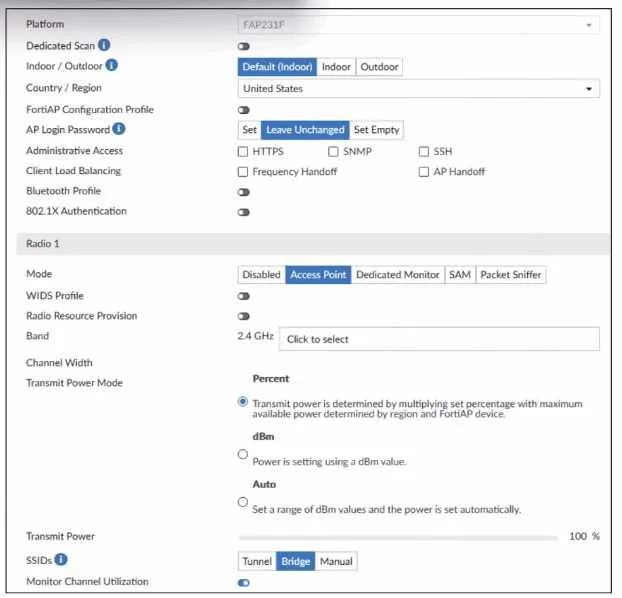

From the exhibits: The AP profile shows: SSIDs: Tunnel | Bridge | Manual The current setting isBridge, not Manual. When BridgeorTunnelis selected, the AP profiledoes NOT automatically broadcast SSIDsunless the corresponding VAPs were explicitly mapped in the AP profile. FortiManager SSID profiles are created, but unless these are explicitly applied underManual SSIDs selection, the AP will not broadcast any SSID. Fortinet documentation states: "To control which SSIDs an AP broadcasts, the AP Profile must have SSIDs set toManual, and the desired SSIDs must be selected." Therefore, to make the AP broadcast the intended SSIDs: You must switch the SSIDs setting to Manual, and manually select the SSIDs (CompanyPrinters, Student01, Guest-CorpPort, PSK).
