How many Domain IDs are reserved in the fabric in the Fibre Channel address space?

The correct answer is B. 17. FC Addressing in Switched Fabric The number of RESERVED Domain IDs = 256 - 239 = 17 An FC address is dynamically assigned when a node port logs on to the fabric. The FC address has a distinct format, as shown in the slide. The first field of the FC address contains the domain…

Storage Networking Technologies

Question

Exhibit

Options

A16
B17
C239
D256

How the community answered

(20 responses)

A
10% (2)
B
80% (16)
C
5% (1)
D
5% (1)

Explanation

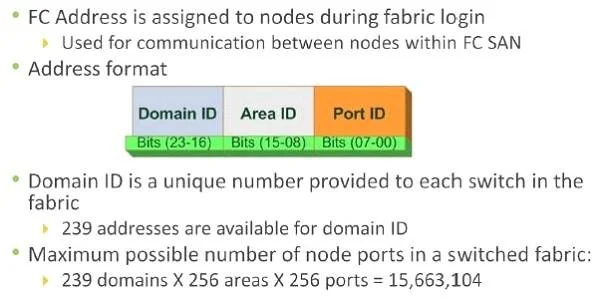

FC Addressing in Switched Fabric The number of RESERVED Domain IDs = 256 - 239 = 17 An FC address is dynamically assigned when a node port logs on to the fabric. The FC address has a distinct format, as shown in the slide. The first field of the FC address contains the domain ID of the switch. A Domain ID is a unique number provided to each switch in the fabric. Although this is an 8-bit field, there are only 239 available addresses for domain ID because some addresses are deemed special and reserved for fabric management services. For example, FFFFFC is reserved for the name server, and FFFFFE is reserved for the fabric

Topics

#Fibre Channel#Domain ID#FC addressing#reserved addresses

Community Discussion

No community discussion yet for this question.
