Question

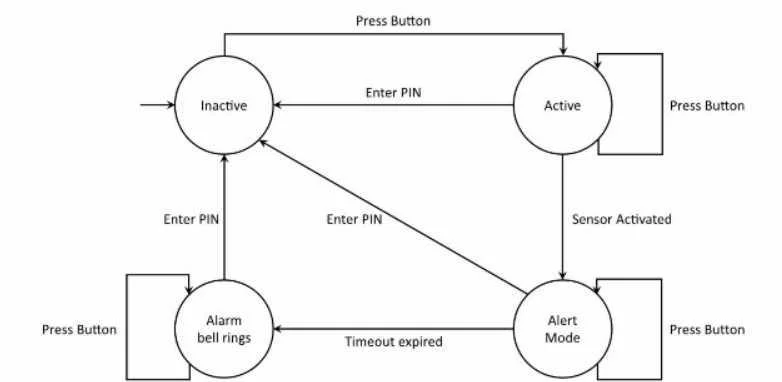

An anti-intrusion system is battery powered and is activated by pressing the only available button. To deactivate the system, the operator must enter a PIN code. The system will stay in alert mode within a configurable timeout and an alarm bell will ring if the system is not deactivated before the timeout expires. The following state transition diagram describes the behavior of the system:
What is the minimum number of test cases needed to cover every unique sequence of exactly 4 states/3 transitions starting and ending in the "Inactive" state? (note that "Inactive" is not a final state in the diagram)
Exhibit
Options
- A1
- B2
- C3
- D4
How the community answered
(38 responses)- A5% (2)
- B26% (10)
- C55% (21)
- D13% (5)
Explanation
In the given state transition diagram, we need to identify the minimum number of test cases required to cover every unique sequence of exactly 4 states/3 transitions starting and ending in the "Inactive" state. Alarm bell rings Test Case Analysis: Inactive -> Active -> Inactive -> Active -> Inactive Sequence: Press Button, Enter PIN, Press Button, Enter PIN Inactive -> Active -> Alert Mode -> Inactive Sequence: Press Button, Sensor Activated, Enter PIN Inactive -> Active -> Alert Mode -> Alarm bell rings -> Inactive Sequence: Press Button, Sensor Activated, Timeout expired, Press Button These sequences cover every unique combination of exactly 4 states and 3 transitions starting and ending in the "Inactive" state.
