Question

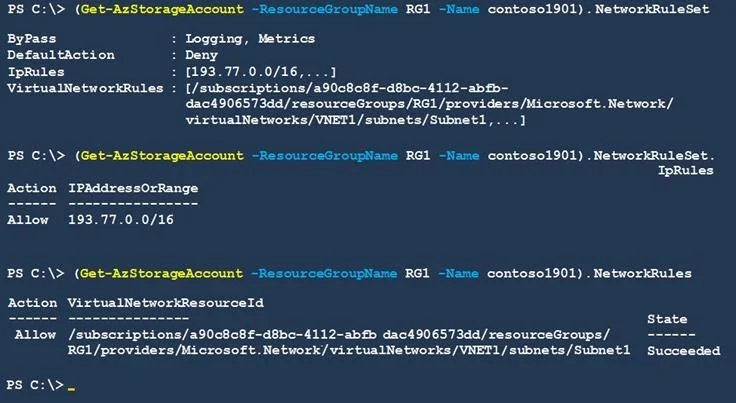

Hotspot Question You create resources in an Azure subscription as shown in the following table. VNET1 contains two subnets named Subnet1 and Subnet2. Subnet1 has a network ID of 10.0.0.0/24. Subnet2 has a network ID of 10.1.1.0/24. Contoso1901 is configured as shown in the exhibit. (Click the Exhibit tab.) For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point. Answer:
Explanation
Azure Storage Account Firewall — Hotspot Explanation
Background
Contoso1901 is an Azure Storage Account with its firewall set to "Selected networks" (not "All networks"). In the exhibit, only Subnet1 (10.0.0.0/24) is listed under the allowed virtual networks. Subnet2 and the public internet are not in the allowed list.
Statement 1 — Subnet1 VM can access Contoso1901 → Yes
Why: Subnet1 is explicitly added to the storage account's firewall "Virtual networks" allow-list, typically via a Service Endpoint (Microsoft.Storage) configured on that subnet. This creates a trusted path between Subnet1 and the storage account, allowing traffic through even though the firewall restricts other sources.
Statement 2 — Subnet2 VM can access Contoso1901 → No
Why: Subnet2 is not in the allowed virtual networks list. Even though Subnet2 is in the same VNET as Subnet1, Azure Storage firewall rules are subnet-specific, not VNET-wide. Each subnet must be individually authorized. Being in the same VNET does not grant automatic access.
Statement 3 — Internet IP 193.77.10.2 can access Contoso1901 → No
Why: The firewall is set to "Selected networks," which blocks all public internet traffic by default unless a specific IP address range is added to the firewall's "Firewall" (IP rules) section. Since 193.77.10.2 is not listed, access is denied.
Memory Tips
| Concept | Remember |
|---|---|
| "Selected networks" mode | Deny-by-default — only explicitly listed subnets/IPs get in |
| Same VNET ≠same access | Firewall rules are per-subnet, not per-VNET |
| Service Endpoints | Required on the subnet before it can be added to the storage firewall allow-list |
| Internet IP access | Must be explicitly listed under Firewall > IP ranges — the CIDR must match |
Key mental model: Think of Azure Storage firewall as a bouncer with a guest list. Even if you're in the same building (VNET), only the specific floors (subnets) on the list get access. Internet guests need their exact IP address on the list.
