Drag and Drop Question You are developing a web service that will run on Azure virtual machines that use Azure Storage. You configure all virtual machines to use managed identities. You have the…

Question

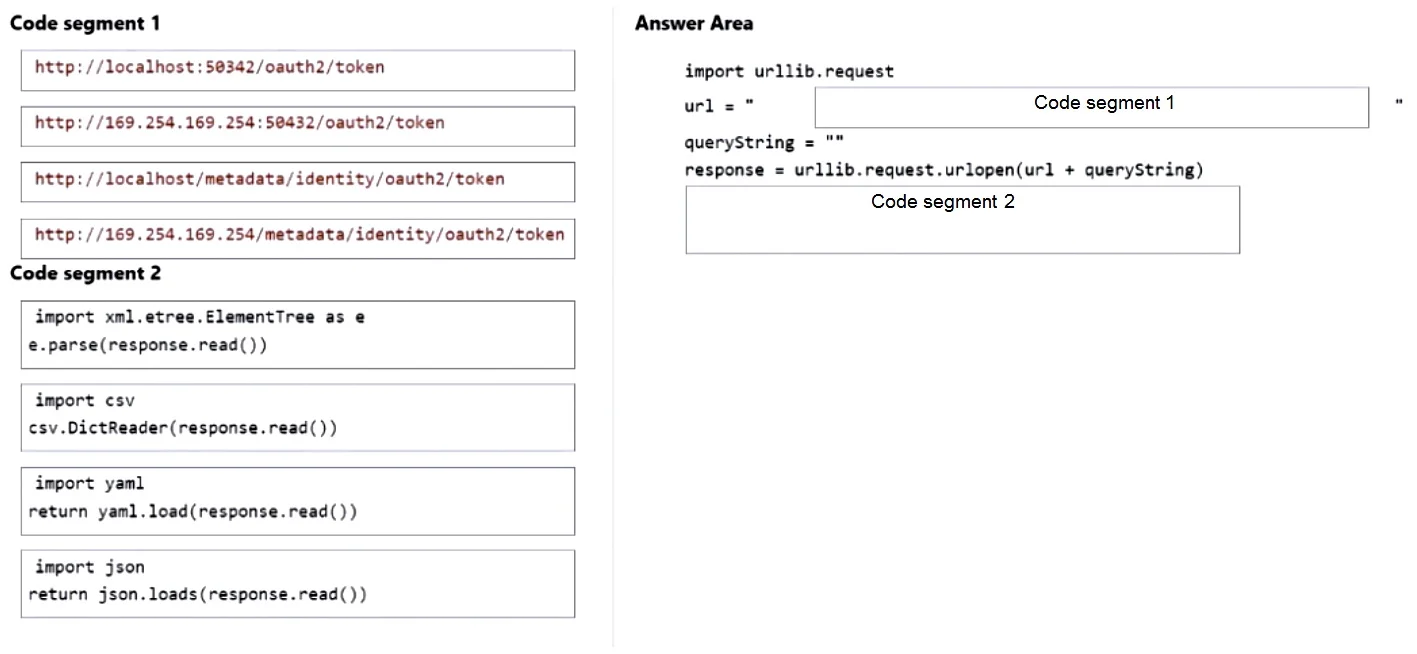

Exhibit

Answer Area

Explanation

Azure Managed Identity Token Retrieval - Explained

Background

Azure Managed Identities eliminate the need for secrets/credentials. To get an access token, the VM calls the Azure Instance Metadata Service (IMDS) - a special local endpoint only accessible from within an Azure VM. The code is likely structured like this:

import urllib.request
import json

url = "http://169.254.169.254/metadata/identity/oauth2/token"
params = "?api-version=2018-02-01&resource=https://storage.azure.com/"
req = urllib.request.Request(url + params)
req.add_header('Metadata', 'true')
response = urllib.request.urlopen(req)
token_data = json.loads(response.read())
access_token = token_data['access_token']

Item 1: http://169.254.169.254/metadata/identity/oauth2/token

This is the IMDS endpoint URL.

• 169.254.169.254 is a link-local IP address reserved by Azure specifically for IMDS. It is only reachable from within an Azure VM - not from the public internet.
• The requirement explicitly states: "Must use only Azure Instance Metadata Service endpoints." This is that endpoint.
• The path /metadata/identity/oauth2/token is the correct IMDS path for fetching a managed identity token.

Why not the others?

• http://localhost/... variants are wrong - localhost is not the IMDS address and would not work for this purpose.
• http://169.254.169.254/oauth2/token is missing the /metadata/identity/ path segment - it would return a 404.

Item 2: import json

This is the required import statement.

• response.read() returns raw bytes. You need a library to parse the JSON response body into a Python dictionary.
• Python's built-in json module is the correct choice.

Why not the others?

• import csv - CSV is a flat text format; Azure token responses are JSON ({"access_token": "...", "expires_on": "..."})
• import yaml - YAML is not used here; Azure IMDS returns JSON, not YAML.

Item 3: json.loads(response.read())

This parses the raw HTTP response bytes into a Python dictionary.

• After importing json, you call json.loads() on the raw bytes from response.read() to get a usable Python object.
• You then access token_data['access_token'] from the result.

Why json.loads(...) and not return json.loads(...)?

• The return variant (return json.loads(response.read())) would only be correct if this code were inside a function. The question's code context places this as an assignment statement, not a return statement. Using return outside a function causes a SyntaxError.

Why not csv.DictReader(...) or yaml.load(...)?

• Same reason as above - the response is JSON, not CSV or YAML.

Common Mistakes Summary
