500-220 · Question #77
Refer to the exhibit. After associating with the Officers SSID and receiving an IP address on the 10.0.0/8 subnet, a wireless user submitted a support ticket that they cannot access wired network…
The correct answer is C. An 'Allow' rule must be added to the Outbound rules list to connect to the necessary resources. The custom Outbound rule ordering is top-down, and the existing deny-Local-LAN rule blocks all wireless clients from reaching 10.0.0.0/8 resources. Placing an explicit “Allow IPv4 Any → Local LAN” rule (or more specific permit for the needed servers) above that deny rule…
Question
Refer to the exhibit. After associating with the Officers SSID and receiving an IP address on the 10.0.0/8 subnet, a wireless user submitted a support ticket that they cannot access wired network resources. Which configuration will provide successful network communication?

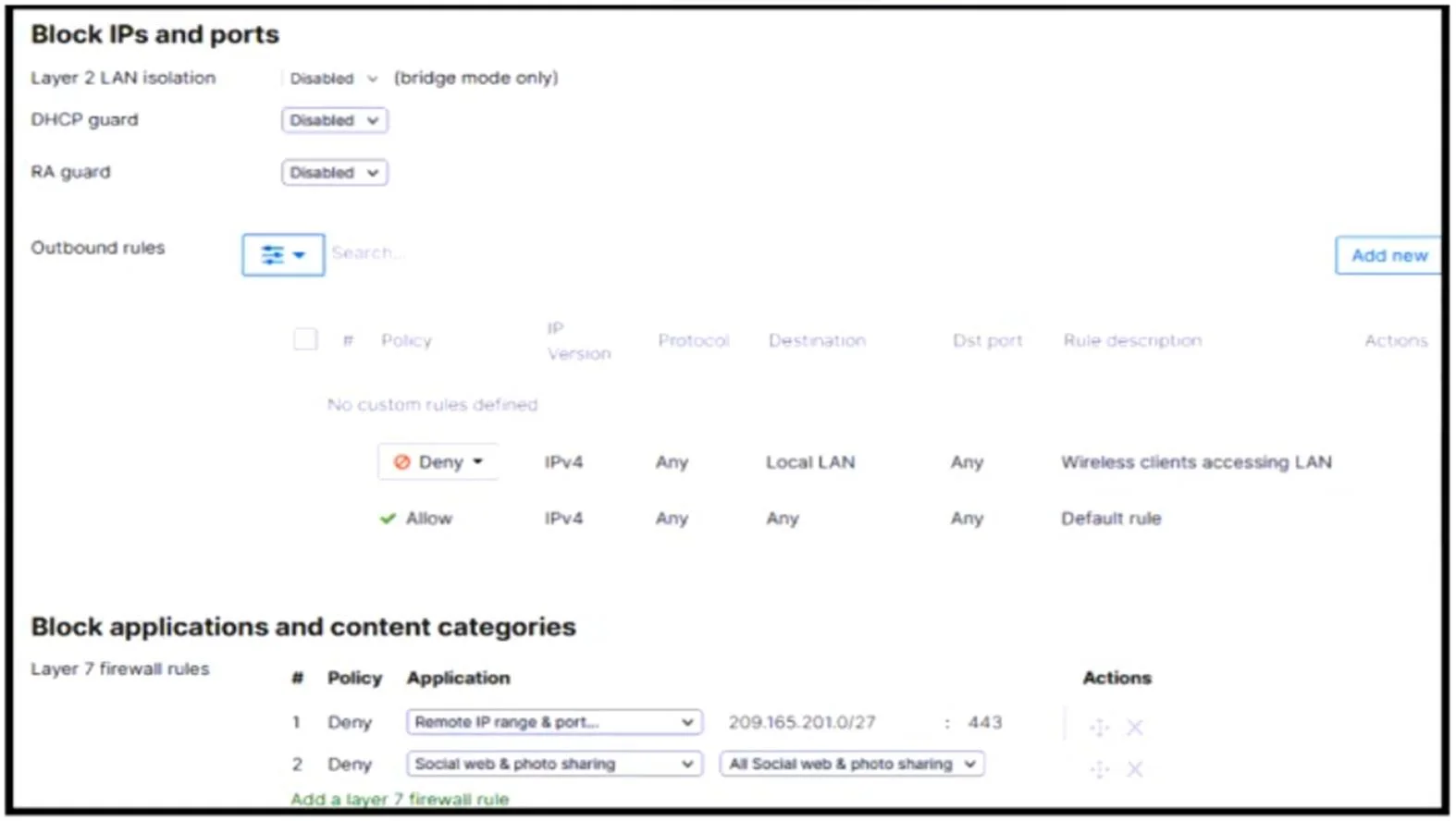

Exhibit
Options
- AThe 'DHCP guard' setting should be adjusted from 'Disabled' to 'Enabled.'
- BThe Layer 7 firewall rules prevent wired IP traffic from being forwarded and should be disabled.
- CAn 'Allow' rule must be added to the Outbound rules list to connect to the necessary resources.
- DThe Layer 2 LAN isolation setting should be adjusted from 'Disabled' to 'Enabled.'
How the community answered
(51 responses)- A4% (2)
- B18% (9)
- C67% (34)
- D12% (6)
Explanation
The custom Outbound rule ordering is top-down, and the existing deny-Local-LAN rule blocks all wireless clients from reaching 10.0.0.0/8 resources. Placing an explicit “Allow IPv4 Any → Local LAN” rule (or more specific permit for the needed servers) above that deny rule restores access.
Topics
Community Discussion
No community discussion yet for this question.
