350-601 · Question #701
Refer to the exhibit. An engineer is troubleshooting a connection issue from the virtual machine that is located on the WebServer 1 blade. The application team requested a packet capture for all…
The correct answer is A. Configure a span session that is sourced from service profile vNIC1 with a destination that is set. To capture all traffic to and from WebServer 1, the SPAN session should source from the vNIC (where the server’s traffic enters/leaves the UCS) and send the mirrored packets to Eth1/3, which connects to the Wireshark machine for analysis. This ensures you capture all VLAN 300…
Question
Refer to the exhibit. An engineer is troubleshooting a connection issue from the virtual machine that is located on the WebServer 1 blade. The application team requested a packet capture for all traffic that is transferred to and from Webserver 1. The engineer confirmed that the host server vNIC1 has VLAN 300 assigned to it. Which action must be taken to capture the traffic?

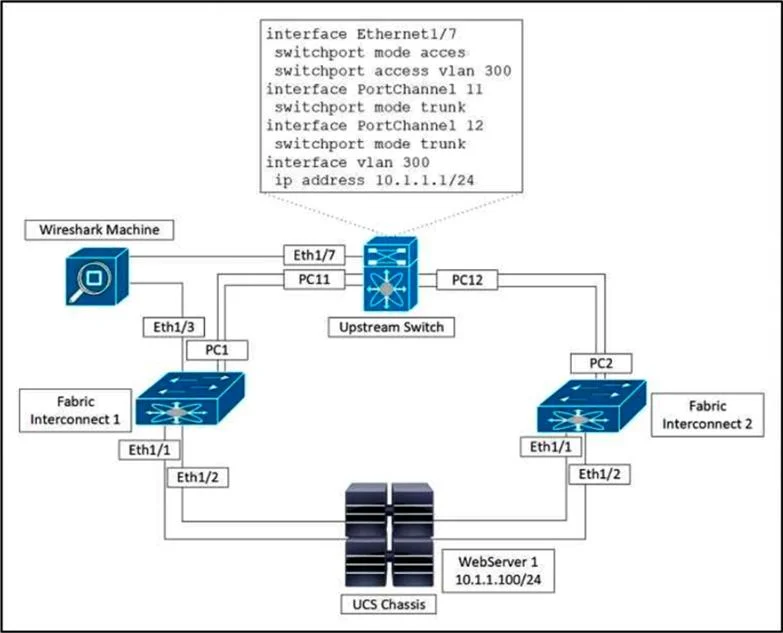

Exhibit
Options
- AConfigure a span session that is sourced from service profile vNIC1 with a destination that is set
- BConfigure a span session that is sourced from Eth1/3 with a destination that is set to Eth1/2.
- CConfigure a span session that is sourced from Eth1/1 with a destination that is set to port channel
- DConfigure a span session that is sourced from port channel 1 with a destination that is set to port
How the community answered
(39 responses)- A79% (31)
- B3% (1)
- C5% (2)
- D13% (5)
Explanation
To capture all traffic to and from WebServer 1, the SPAN session should source from the vNIC (where the server’s traffic enters/leaves the UCS) and send the mirrored packets to Eth1/3, which connects to the Wireshark machine for analysis. This ensures you capture all VLAN 300 traffic associated with WebServer 1.
Topics
Community Discussion
No community discussion yet for this question.
