Refer to the exhibit. The router R1 and N9K1 establish EIGRP neighborship. R1 is advertising network 10.1.1.15/32 to N9K1 and N9K2 and N9K3 are forming the OSPF neighborship over area 1. Which…
The correct answer is A. N9K2(config-router)# area 1 stub no-summary. Configuring area 1 as a stub on N9K3 and as a totally stubby area (stub no-summary) on N9K2 prevents external LSAs (Type 5) from being injected into area 1. This blocks the advertisement of the external route (10.1.1.15/32) to N9K3.
Network
Question
Refer to the exhibit. The router R1 and N9K1 establish EIGRP neighborship. R1 is advertising network 10.1.1.15/32 to N9K1 and N9K2 and N9K3 are forming the OSPF neighborship over area 1. Which configuration prevents N9K3 from receiving external LSA for network 10.1.1.15/32?

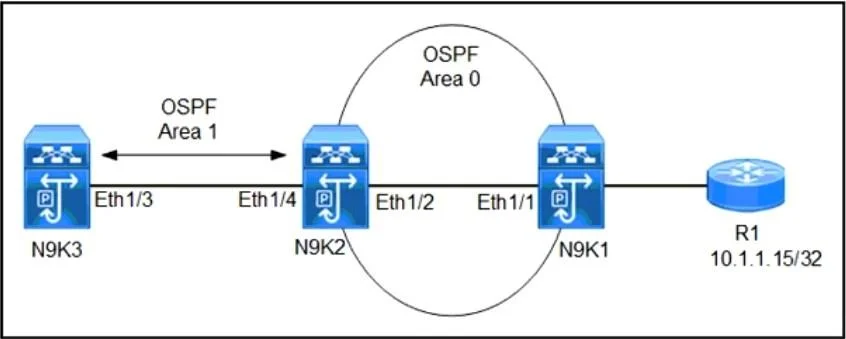

Exhibit
Options
- AN9K2(config-router)# area 1 stub no-summary
- BN9K2(config-router)# area 0 stub no-summary
- CN9K3(config-router)# area 1 stub no-summary
- DN9K3(config-router)# area 1 stub no-summary
How the community answered
(36 responses)- A75% (27)
- B14% (5)
- C8% (3)
- D3% (1)
Explanation
Configuring area 1 as a stub on N9K3 and as a totally stubby area (stub no-summary) on N9K2 prevents external LSAs (Type 5) from being injected into area 1. This blocks the advertisement of the external route (10.1.1.15/32) to N9K3.
Topics
#OSPF#OSPF Stub Area#Network Routing#Cisco NX-OS
Community Discussion
No community discussion yet for this question.
