Refer to the exhibit. An engineer must configure SPAN to monitor the traffic sent to the server. The copied traffic must be sent to the network analyzer. Which configuration on N9K1 accomplishes these goals?

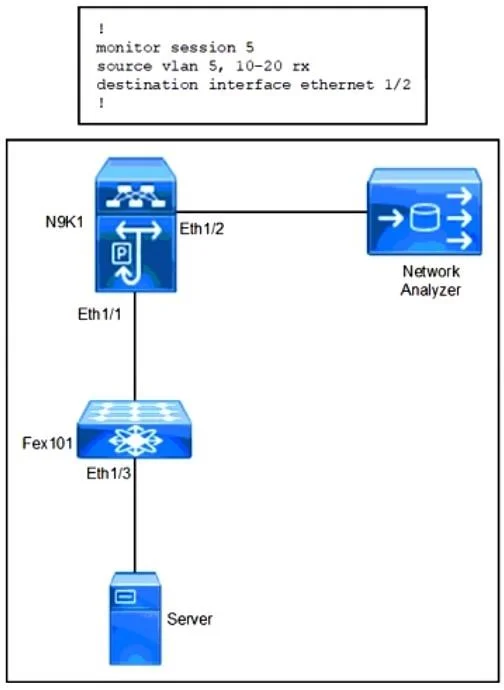

Exhibit

Options

Asource interface eth101/1/1 tx
Bsource interface eth1/3 tx
Csource interface eth1/1 tx
Dsource interface eth101/1/3 tx

How the community answered

(30 responses)

A
3% (1)
B
3% (1)
D
93% (28)

Explanation

The server is connected to interface Eth1/3 on the FEX101, which maps to Eth101/1/3 on the parent Nexus 9000 switch (N9K1). To monitor traffic sent to the server, you must capture transmit (tx) traffic on that interface. In Cisco Nexus architecture: Interfaces on a FEX (Fabric Extender) appear on the parent switch as eth101/1/x. To monitor traffic from the switch to the server (tx direction), the correct SPAN source is source interface eth101/1/3 tx This meets the goal of copying traffic destined for the server to the network analyzer connected to

Topics

#SPAN#Network Monitoring#Cisco Nexus#Traffic Direction
