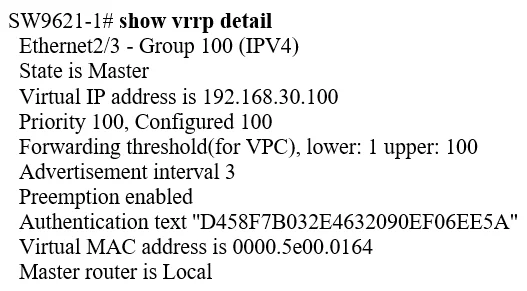

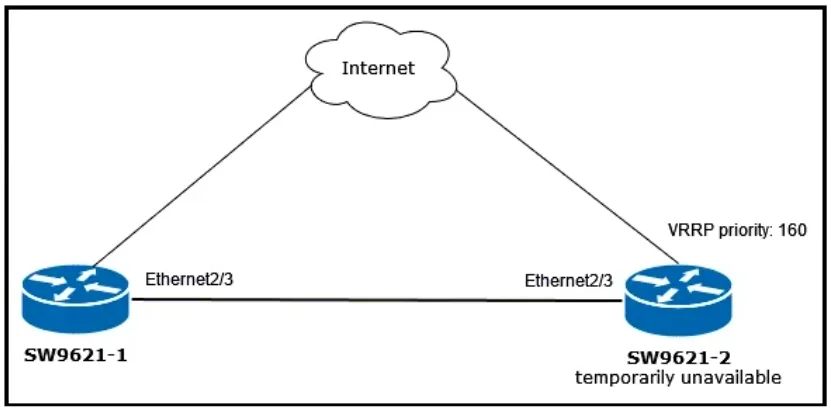

Refer to the exhibit. What happens to the VRRP configuration when the router SW9621-2 becomes operational?

Question

Exhibits

Options

• AThe SW9621-2 router becomes a new active master.
• BThe SW9621-1 router becomes a new active master after 3 seconds.
• CThe SW9621-1 router remains an active master.
• DThe SW9621-2 router becomes an active master after 3 seconds.

• A
  76% (16)
• B
  5% (1)
• C
  14% (3)
• D
  5% (1)

Explanation

VRRP (Virtual Router Redundancy Protocol) elects a Master router based on priority values. When SW9621-2 comes back online, if it has a higher VRRP priority than the currently active master (SW9621-1), and VRRP preemption is enabled (which is the default), SW9621-2 will immediately send advertisements claiming mastership. SW9621-1, receiving advertisements with a higher priority, will demote itself to Backup. Therefore SW9621-2 becomes the new active master without delay. The exhibit implies SW9621-2 has the higher priority. Answer D (after 3 seconds) would apply to a specific preemption delay timer configuration, which is not indicated here. Answers B and C incorrectly assume SW9621-1 retains or reclaims mastership.
