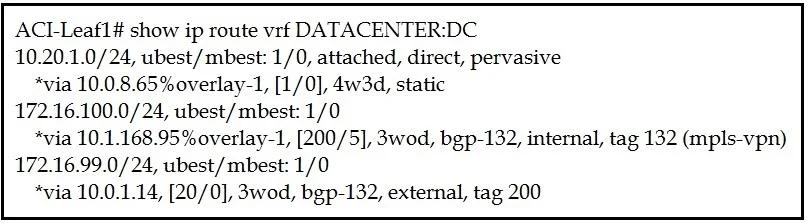

Refer to the exhibit. Which two statements about the routing table of the leaf switch are true? (Choose two.)

The correct answer is A. 10.20.1.0/24 is a BD subnet in ACI. D. The next hop 10.1.168.95 for route 172.16.100.0/24 is the TEP address of a border leaf in ACI. 10.20.1.0/24 is a BD in ACI because of the part which says "direct, pervasive". For the other answer choice, we see form the administrative distance and the "internal" naming, we know that this is an external subnet (172.16.100.0/24) and that as all external routes are…

Network

Question

Exhibit

Options

A10.20.1.0/24 is a BD subnet in ACI.
BThe next hop 10.0.1.14 for route 172.16.99.0/24 is the TEP address of a border leaf in ACI.
C172.16.100.0/24 is a BD subnet in ACI.
DThe next hop 10.1.168.95 for route 172.16.100.0/24 is the TEP address of a border leaf in ACI.
EThe next hop 10.0.8.65 for route 10.20.1.0/24 is the TEP address of a border leaf in ACI.

How the community answered

(31 responses)

A
61% (19)
B
10% (3)
C
23% (7)
E
6% (2)

Explanation

10.20.1.0/24 is a BD in ACI because of the part which says "direct, pervasive". For the other answer choice, we see form the administrative distance and the "internal" naming, we know that this is an external subnet (172.16.100.0/24) and that as all external routes are exchanged withing the fabric through MP-BG. MP-BGP is actually used to populate the leaves in the fabric with routing on how to reach those external routes. In MP-BGP, the spines are only the route reflectors. So from this we know that the next hop of the external subnet will be a VTEP of a

Topics

#ACI Routing#Bridge Domains#L3Out#TEP
