350-601 · Question #392
Refer to the exhibits. An engineer must implement a SPAN session that sends a copy of all VLAN 11 traffic on N5K_1 to the Traffic Capturing Device. The configuration that is presented is already…
The correct answer is B. Choose VLAN 11 under the VSANs section. The SPAN (Switched Port Analyzer) session shown in the Cisco UCS Manager is focused on Fibre Channel traffic, as indicated by the options for SAN components. To capture traffic on VLAN 11, which is associated with FCoE (Fibre Channel over Ethernet), VLAN 11 needs to be selected…
Question

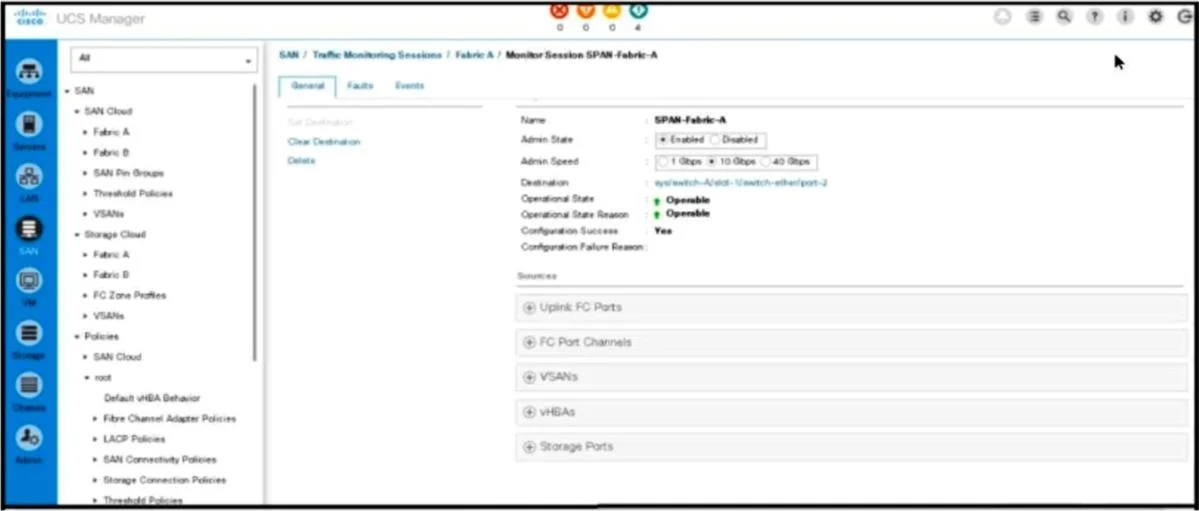

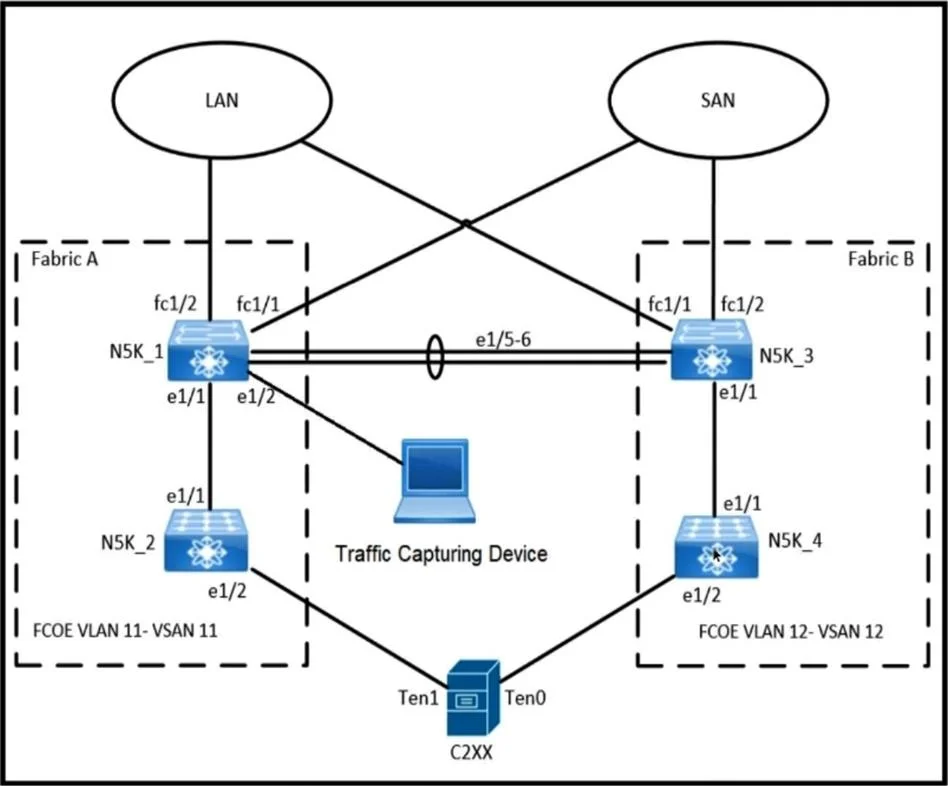

Refer to the exhibits. An engineer must implement a SPAN session that sends a copy of all VLAN 11 traffic on N5K_1 to the Traffic Capturing Device. The configuration that is presented is already applied to the Cisco UCS Manager. Which additional action meets the objective?
Exhibits
Options
- AAssign the VLAN to the monitored port.
- BChoose VLAN 11 under the VSANs section.
- CSelect the Clear Destination feature.
- DCreate a LAN traffic monitoring session.
How the community answered
(51 responses)- A2% (1)
- B80% (41)
- C12% (6)
- D6% (3)
Explanation
The SPAN (Switched Port Analyzer) session shown in the Cisco UCS Manager is focused on Fibre Channel traffic, as indicated by the options for SAN components. To capture traffic on VLAN 11, which is associated with FCoE (Fibre Channel over Ethernet), VLAN 11 needs to be selected under the VSANs section. This associates the FCoE VLAN with the correct SPAN configuration to forward the required traffic.
Topics
Community Discussion
No community discussion yet for this question.
