350-501 · Question #407

Refer to the exhibit. The operations team is implementing an LDP-based configuration in the service-provider core network with these requirements: - RC must establish LDP peering with the loopback…

The correct answer is B. Enable the mpls ip command on RC interface Gi2/0. To successfully enable LDP peering between RA and RC, MPLS must be explicitly enabled on the interface connecting the two routers.

MPLS and Segment Routing

Question

Refer to the exhibit. The operations team is implementing an LDP-based configuration in the service-provider core network with these requirements:

  • RC must establish LDP peering with the loopback IP address as its

Router ID.

  • RA must establish LDP peering with RB, RC, and RY.

How must the team update the network configuration to successfully enable LDP peering between RA and RC?

Exhibits

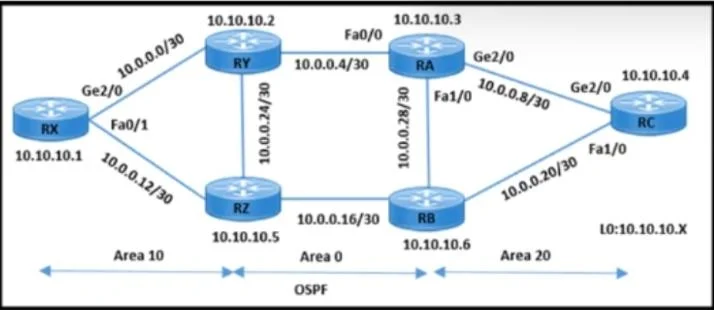

350-501 question #407 exhibit 1

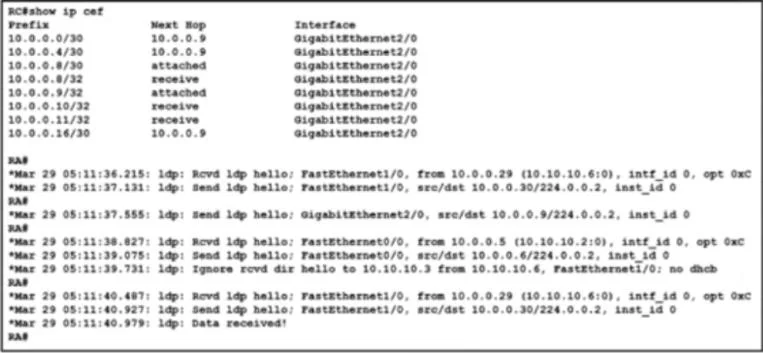

350-501 question #407 exhibit 2

Options

  • AImplement LDP session protection on RA.
  • BEnable the mpls ip command on RC interface Gi2/0.
  • CReset the discover hello hold time and interval to their default values.
  • DConfigure the mpls ldp router-id loopback0 command on RA and RC.

How the community answered

(22 responses)
  • A
    9% (2)
  • B
    86% (19)
  • D
    5% (1)

Why each option

To successfully enable LDP peering between RA and RC, MPLS must be explicitly enabled on the interface connecting the two routers.

AImplement LDP session protection on RA.

LDP session protection is used to maintain an LDP session even if the directly connected interface fails, by using a targeted LDP session over another path, and is not a prerequisite for initial peering.

BEnable the mpls ip command on RC interface Gi2/0.Correct

The mpls ip command must be enabled on an interface for it to participate in LDP, allowing LDP hellos to be sent and received and LDP adjacencies to form over that interface. Without this command on RC's Gi2/0, LDP packets cannot be processed, preventing peering with RA.

CReset the discover hello hold time and interval to their default values.

Resetting LDP hello hold time and interval to default values might resolve timer-related issues, but it's not the fundamental step for enabling LDP on an interface.

DConfigure the mpls ldp router-id loopback0 command on RA and RC.

While configuring mpls ldp router-id loopback0 is a requirement for RC's LDP router ID, it does not enable LDP itself on the interface, which is necessary for peering to establish.

Concept tested: LDP interface enablement

Source: https://www.cisco.com/c/en/us/td/docs/ios/ipswitch/command/reference/isw_r_book/isw_i1.html#wp1026600

Topics

#LDP#MPLS#Peering#Configuration
