350-501 Question #197: Real Exam Question with Answer & Explanation

The correct answer is B: ip access-list extended INFRA-ACL. The infrastructure ACL must specifically permit SSH traffic from the management network to CPE-R7, explicitly deny all other traffic to CPE-R7, and then permit all other legitimate transit traffic through PE-R9.

Networking

Question

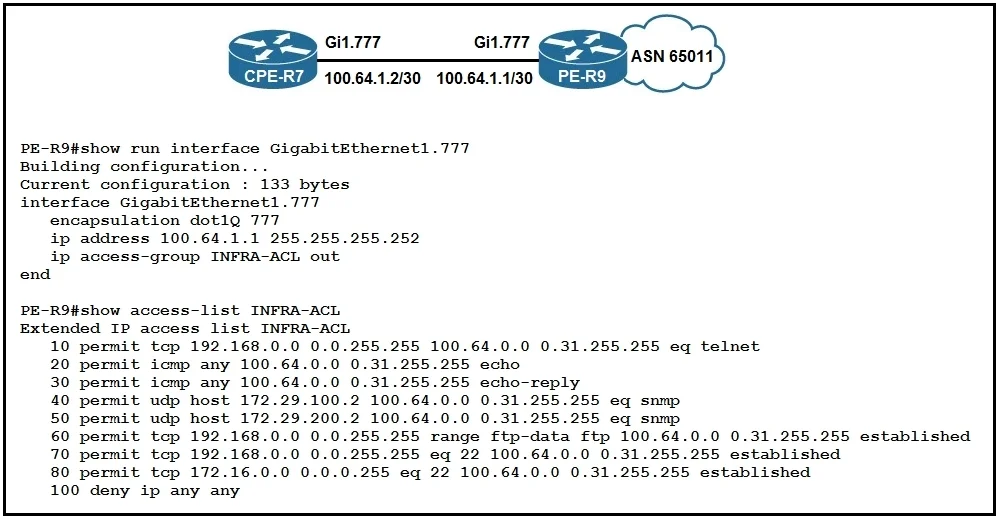

Refer to the exhibit. To protect in-band management access to CPE-R7, an engineer wants to allow only SSH management and provisioning traffic from management network 192.168.0.0/16. Which infrastructure ACL change must be applied to router PE-R9 to complete this task?

Options

Aip access-list extended INFRA-ACL
Bip access-list extended INFRA-ACL
Cip access-list extended INFRA-ACL
Dip access-list extended INFRA-ACL

Explanation

The infrastructure ACL must specifically permit SSH traffic from the management network to CPE-R7, explicitly deny all other traffic to CPE-R7, and then permit all other legitimate transit traffic through PE-R9.

Common mistakes.

A. While it permits SSH and then denies other IP traffic to CPE-R7, it lacks the 'permit ip any any' at the end, which would implicitly deny all other transit traffic through PE-R9, likely disrupting other network services.
C. This ACL starts by explicitly denying TCP SSH traffic to CPE-R7, which directly contradicts the requirement to allow it.
D. This ACL permits SSH traffic from any source, not just the specified 192.168.0.0/16 management network, making the protection less granular. It also has an implicit 'deny ip any any' at the end which would block all other transit traffic.

Concept tested. Infrastructure ACL (iACL) configuration for device protection

Reference. https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/security/dpa/configuration/xe-3s/sec-dpa-xe-3s-book/sec-acl-best-pract.html

Topics

#ACL#Network Security#SSH#Network Management
