350-401 · Question #984
Drag and Drop Question Drag and drop the snippets onto the blanks within the code to construct a script that brings up the failover Ethernet port if the primary port goes down and also shuts down the
The correct answer is Down; GigabitEthernet4/0/9; Shutdown. The correct arrangement uses 'Down' as the trigger condition to detect when the primary port has failed, 'GigabitEthernet4/0/9' as the failover port to be brought up (while GigabitEthernet3/0/10 is the primary), and 'Shutdown' as the action taken on the failover port when the pri
Question
Drag and Drop Question Drag and drop the snippets onto the blanks within the code to construct a script that brings up the failover Ethernet port if the primary port goes down and also shuts down the failover port when the primary returns to service. Not all options are used. Answer:

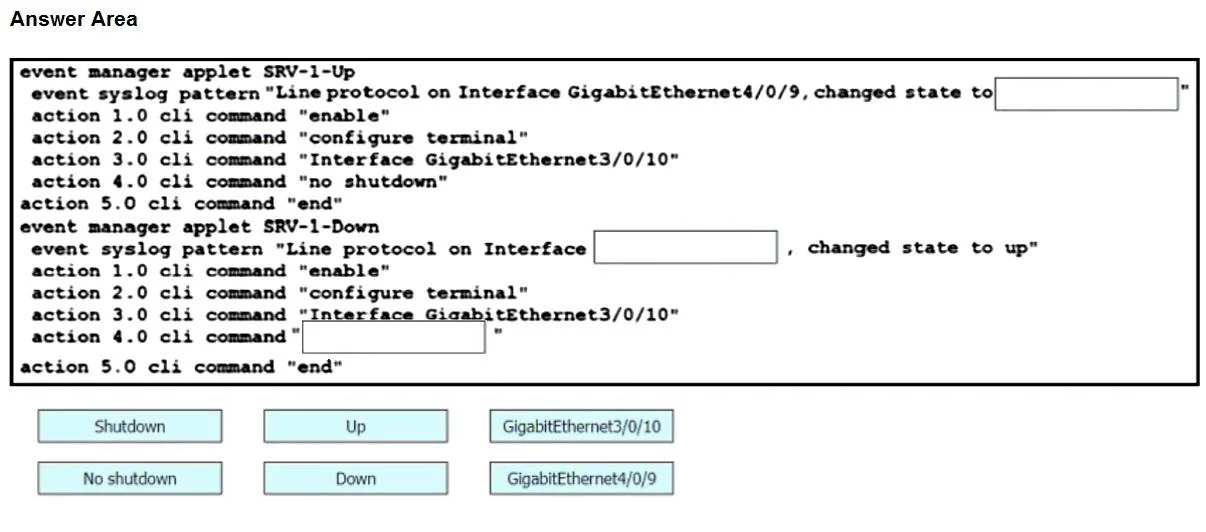

Exhibit
Answer Area
Drag items
Correct arrangement
- Down
- GigabitEthernet4/0/9
- Shutdown
Explanation
The correct arrangement uses 'Down' as the trigger condition to detect when the primary port has failed, 'GigabitEthernet4/0/9' as the failover port to be brought up (while GigabitEthernet3/0/10 is the primary), and 'Shutdown' as the action taken on the failover port when the primary returns to service. This logic follows EEM (Embedded Event Manager) or tracking-based failover scripting where the script monitors the primary interface state and inversely controls the backup interface - enabling it on failure and disabling it on recovery.
