350-401 · Question #776

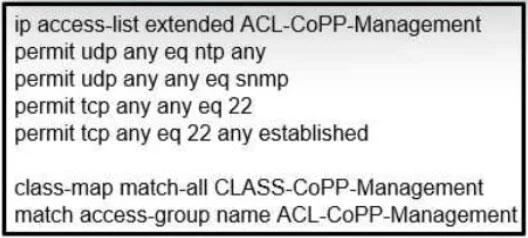

Refer to the exhibit. An engineer must protect the CPU of the router from high rates of NTP, SNMP, and SSH traffic. Which two configurations must be applied to drop these types of traffic when it cont
The correct answer is C. R1(config)#policy-map POLICY-CoPP E. R1(config)#control-plane R1(config-cp)# service-policy input POLICY-CoPP. Control Plane Policing (CoPP) protects the router CPU by defining a policy map for specific traffic and applying it to the control plane in the input direction.
Question
Exhibits
Options
- AR1(config-pmap)#class CLASS-CoPP-Management
- BR1(config)#policy-map POLICY-CoPP
- CR1(config)#policy-map POLICY-CoPP
- DR1(config)#control-plane R1(config-cp)# service-policy output POLICY-CoPP
- ER1(config)#control-plane R1(config-cp)# service-policy input POLICY-CoPP
How the community answered
(34 responses)- A3% (1)
- B9% (3)
- C82% (28)
- D6% (2)
Why each option
Control Plane Policing (CoPP) protects the router CPU by defining a policy map for specific traffic and applying it to the control plane in the input direction.
`class CLASS-CoPP-Management` is used within a policy-map definition, not as a standalone command to initiate the overall CoPP strategy.
This option is identical to C, which is already selected as a correct answer in a 'choose two' scenario, indicating a redundancy in choices.
This command initiates the creation or modification of a policy map, which is essential for defining the classification and policing actions for the specified traffic types (NTP, SNMP, SSH).
Applying the service policy to the `output` of the control plane would rate-limit traffic originating from the router's CPU, not protect it from incoming malicious traffic.
This command applies the defined `POLICY-CoPP` to the control plane in the input direction, ensuring that incoming management traffic destined for the router's CPU is policed according to the policy rules.
Concept tested: Control Plane Policing (CoPP) configuration
Source: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_data_cpp/configuration/15-mt/sec-data-cpp-15-mt-book/sec-data-cpp-concepts.html
