Refer to the exhibit. An engineer must configure an L3Out peering with the backbone network. The L3Out must forward unicast and multicast traffic over the link. Which two methods should be used to…

The correct answer is A. Layer 3 routed port D. Layer 3 routed subinterface. "PIM is supported on Layer 3 Out routed interfaces and routed subinterfaces including Layer 3 port-channel interfaces. PIM is not supported on Layer 3 Out SVI interfaces." x/L3_config/b_Cisco_APIC_Layer_3_Configuration_Guide/b_Cisco_APIC_Layer_3_Configuratio…

External Network Connectivity

Question

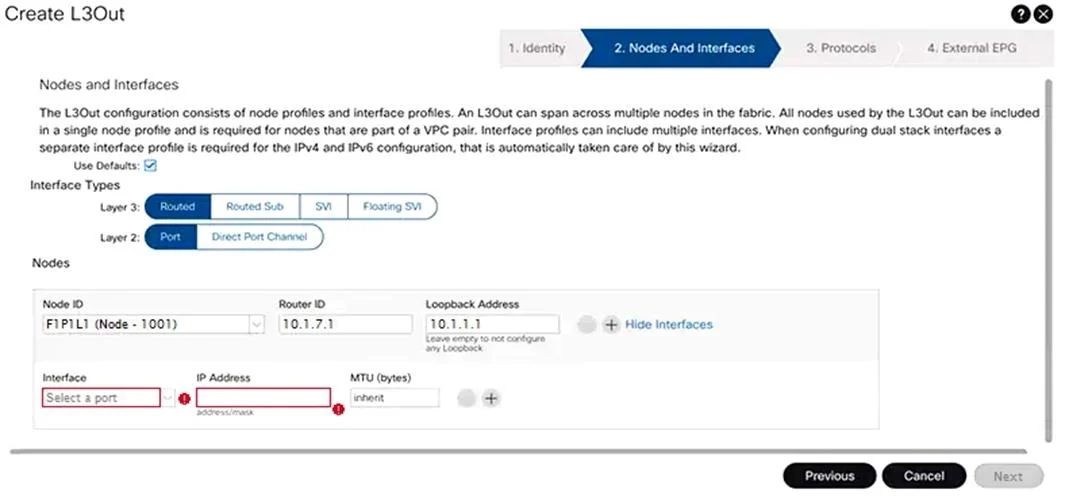

Refer to the exhibit. An engineer must configure an L3Out peering with the backbone network. The L3Out must forward unicast and multicast traffic over the link. Which two methods should be used to configure L3Out to meet these requirements? (Choose two.)

Exhibit

Options

ALayer 3 routed port
BVPC with SVI
Cport channel with SVI
DLayer 3 routed subinterface
ELayer 3 floating SVI

How the community answered

(27 responses)

A
89% (24)
C
7% (2)
E
4% (1)

Explanation

"PIM is supported on Layer 3 Out routed interfaces and routed subinterfaces including Layer 3 port-channel interfaces. PIM is not supported on Layer 3 Out SVI interfaces." x/L3_config/b_Cisco_APIC_Layer_3_Configuration_Guide/b_Cisco_APIC_Layer_3_Configuratio n_Guide_chapter_01111.html#id_21570

Topics

#L3Out#Routed port#Routed subinterface#External routing

Community Discussion

No community discussion yet for this question.
