Refer to the exhibit. A Cisco ACI fabric has four access policy groups. The VPC reciprocal protection group has been defined. The N9K1 trunks VLANs 10-20 to ACI leaf switches. Which policy group must

The correct answer is B. PEGRMET12_PolGrp. The fabric links from N9K1 to two separate ACI leaves form a VPC-style multi-node port channel. You must use the policy group with lagT = node (PEGRMET12_PolGrp) so that both Eth1/1 and Eth1/2 are treated as one port‐channel across leaf1 and leaf2.

ACI Fabric Infrastructure

Question

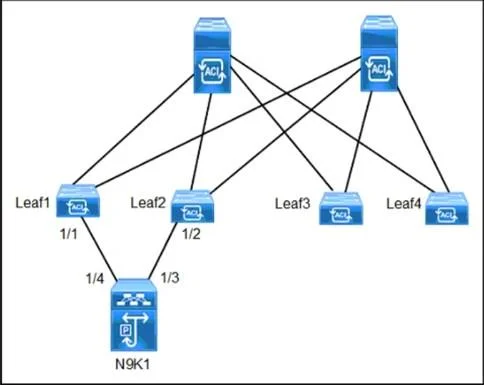

Refer to the exhibit. A Cisco ACI fabric has four access policy groups. The VPC reciprocal protection group has been defined. The N9K1 trunks VLANs 10-20 to ACI leaf switches. Which policy group must be associated with Eth1/1 and Eth1/2 to complete the deployment?

Exhibits

Options

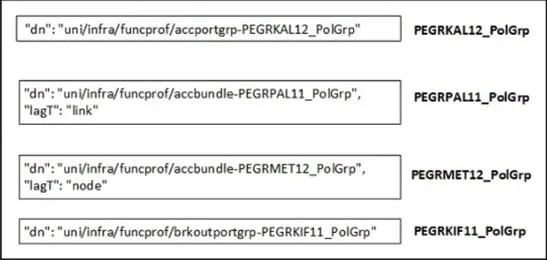

APEGRKAL12_PolGrp
BPEGRMET12_PolGrp
CPEGRKIF11_PolGrp
DPEGRPAL11_PolGrp

How the community answered

(32 responses)

A
16% (5)
B
72% (23)
C
9% (3)
D
3% (1)

Explanation

The fabric links from N9K1 to two separate ACI leaves form a VPC-style multi-node port channel. You must use the policy group with lagT = node (PEGRMET12_PolGrp) so that both Eth1/1 and Eth1/2 are treated as one port‐channel across leaf1 and leaf2.

Topics

#Access policy groups#VPC#VLAN trunking#Leaf interface policy

Community Discussion

No community discussion yet for this question.
