300-615 · Question #292
Refer to the exhibit. The Cisco UCS server that is connected to a Fibre Channel over Ethernet fails to connect to the storage device. The engineer verified that all cables are connected correctly…
The correct answer is D. Enable LLDP to be received. The LLDP output shows DCBX is on but LLDP receive is disabled (tx/rx/dcbx: Y/N/Y), so the FCoE-capable peer's DCBX advertisements aren't being learned. Enabling LLDP receive on that Ethernet interface allows the switch to negotiate DCBX (PFC/ETS), restoring FCoE connectivity to…
Question
Refer to the exhibit. The Cisco UCS server that is connected to a Fibre Channel over Ethernet fails to connect to the storage device. The engineer verified that all cables are connected correctly and analyzed packet flow in the Cisco UCS domain. Which step must be taken next to resolve the issue?

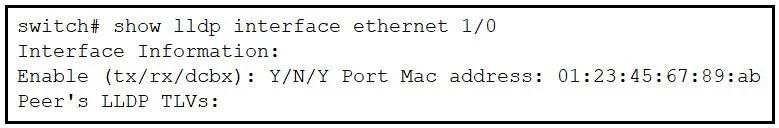

Exhibits
Options
- AUse the converged network adapter that supports DCBX.
- BActivate the STP port.
- CSet the VSAN trunk protocol.
- DEnable LLDP to be received.
How the community answered
(25 responses)- A4% (1)
- B12% (3)
- C4% (1)
- D80% (20)
Explanation
The LLDP output shows DCBX is on but LLDP receive is disabled (tx/rx/dcbx: Y/N/Y), so the FCoE-capable peer's DCBX advertisements aren't being learned. Enabling LLDP receive on that Ethernet interface allows the switch to negotiate DCBX (PFC/ETS), restoring FCoE connectivity to the storage device.
Topics
Community Discussion
No community discussion yet for this question.
