300-615 · Question #289
Refer to the exhibit. The ESXi hosts fail to communicate with shared storage. Which type of port must interfaces eth2/2 and eth2/4 be configured as to resolve the issue?
The correct answer is B. appliance. On a UCS Fabric Interconnect, any non‐UCS endpoint, like a storage array, must be hooked onto an appliance port. This port-type tells the FI to treat the device as a standalone appliance (not a blade server or uplink) and correctly forward its FCoE/Ethernet traffic into the…
Question

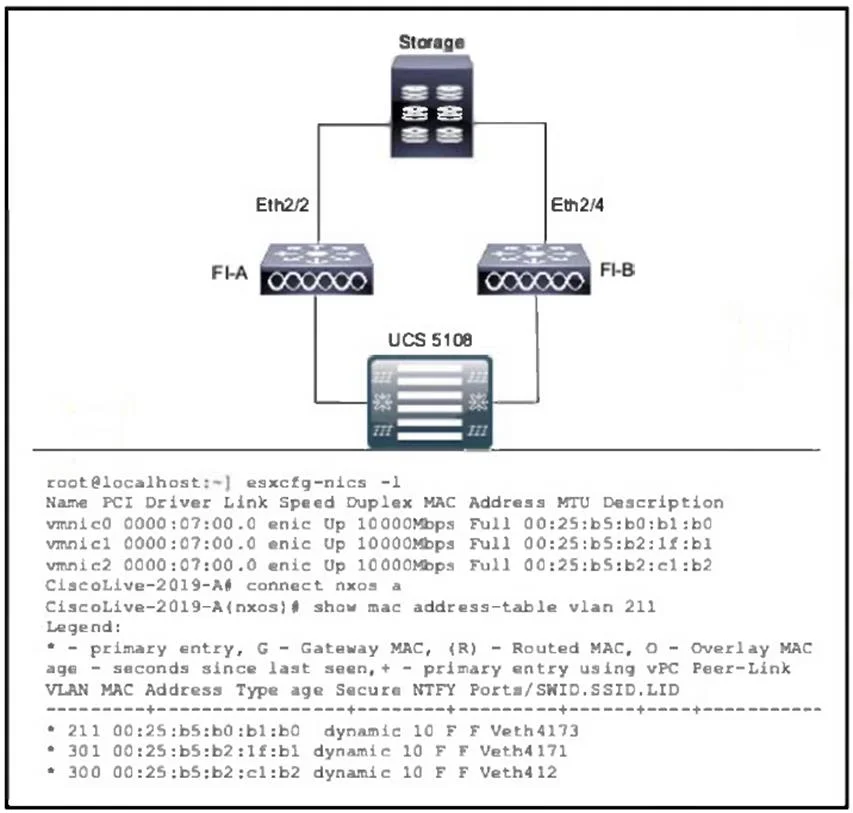

Refer to the exhibit. The ESXi hosts fail to communicate with shared storage. Which type of port must interfaces eth2/2 and eth2/4 be configured as to resolve the issue?
Exhibits
Options
- AFCoE uplink
- Bappliance
- Cserver
- Duplink
How the community answered
(48 responses)- A4% (2)
- B85% (41)
- C8% (4)
- D2% (1)
Explanation
On a UCS Fabric Interconnect, any non‐UCS endpoint, like a storage array, must be hooked onto an appliance port. This port-type tells the FI to treat the device as a standalone appliance (not a blade server or uplink) and correctly forward its FCoE/Ethernet traffic into the SAN. Configuring Eth2/2 and Eth2/4 as appliance ports restores connectivity to the shared storage.
Topics
Community Discussion
No community discussion yet for this question.
