Question
Refer to the exhibit. A network engineer falls to boot a Cisco UCS blade from SAN. The data center uses Cisco UCS B-Series blades with the end-host mode configured on Cisco Fabric Interconnects. The storage administrator reports no issues with the array. Which action resolves the issue?

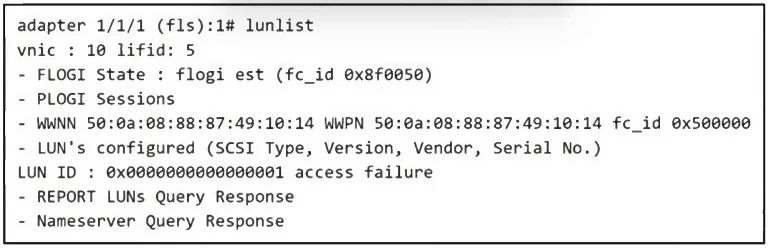

Exhibits
Options
- ARemove the LUN ID from the boot policy.
- BModify zoning on the upstream switch.
- CChange zoning on the Cisco UCS side.
- DUnmask the LUN on the storage array.
How the community answered
(15 responses)- A13% (2)
- C7% (1)
- D80% (12)
Explanation
The output shows that the LUN access failure is occurring, which usually happens when the storage array has not been properly configured to allow access to the LUN for the server's WWPN (World Wide Port Name). LUN masking is a method used on the storage array to ensure that specific servers can access specific LUNs. In this case, the LUN is not visible because it has not been unmasked for the By unmasking the LUN on the storage array for the WWPN of the Cisco UCS blade, the LUN will be accessible, resolving the boot issue.
