Refer to the exhibit. An engineer is configuring zone distribution on the Cisco Nexus 9000 Series Switch. After initial configuration, the zone distribution for VSAN 20 from core-2 to edge-2 fails. Wh

The correct answer is D. Create VSAN 20 on ecge-2.. Based on the output, VSAN 20 is configured on core-2, but the configuration for edge-2 only shows VSAN 1, 4079, and 4094. The absence of VSAN 20 on edge-2 is the reason the zone distribution is failing. To resolve the issue, you need to create VSAN 20 on edge-2 to match the confi

Storage Network

Question

Refer to the exhibit. An engineer is configuring zone distribution on the Cisco Nexus 9000 Series Switch. After initial configuration, the zone distribution for VSAN 20 from core-2 to edge-2 fails. Which action resolves the issue?

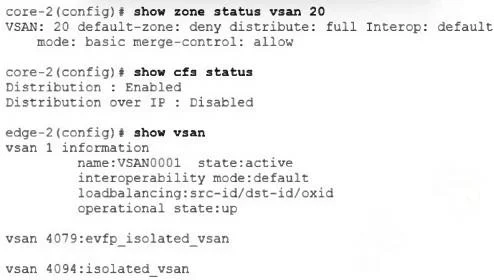

Exhibits

Options

AIssue permit distribute on core-2.
BSet port mode to NP on edge-2.
CChange interop mode on core-2 to 1.
DCreate VSAN 20 on ecge-2.

How the community answered

(24 responses)

A
8% (2)
B
13% (3)
C
4% (1)
D
75% (18)

Explanation

Based on the output, VSAN 20 is configured on core-2, but the configuration for edge-2 only shows VSAN 1, 4079, and 4094. The absence of VSAN 20 on edge-2 is the reason the zone distribution is failing. To resolve the issue, you need to create VSAN 20 on edge-2 to match the configuration on core- 2. This will allow the zone distribution to propagate correctly between the switches.

Topics

#zone distribution#VSAN#Nexus 9000 FC#edge switch
