300-610 · Question #231

Refer to the exhibit. An engineer must design a solution that facilitates IP mobility and avoids hair pinning between DC1 and DC2 in an active/active data center design. The current environment implem

The correct answer is B. Implement anycast gateways on both DCs.. To facilitate IP mobility and avoid hair-pinning between active/active data centers with stretched subnets advertised to the WAN by both, implementing anycast gateways on both DCs is the correct solution.

Data Center Network Design

Question

Refer to the exhibit. An engineer must design a solution that facilitates IP mobility and avoids hair pinning between DC1 and DC2 in an active/active data center design. The current environment implements stretched subnets advertised to the WAN by both data centers. Which solution must the engineer choose?

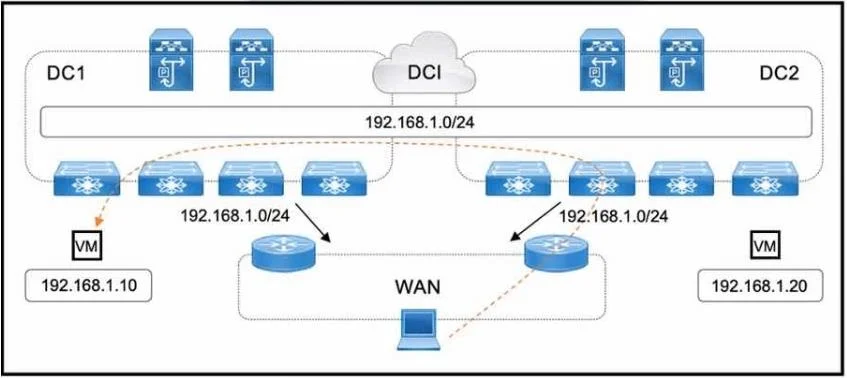

Exhibit

300-610 question #231 exhibit

Options

  • AConfigure active HSRP on DC2.
  • BImplement anycast gateways on both DCs.
  • CAdvertise host routes on both DCs.
  • DFilter stretched subnets on DC2 with outbound route map.

How the community answered

(48 responses)
  • A
    4% (2)
  • B
    81% (39)
  • C
    13% (6)
  • D
    2% (1)

Why each option

To facilitate IP mobility and avoid hair-pinning between active/active data centers with stretched subnets advertised to the WAN by both, implementing anycast gateways on both DCs is the correct solution.

AConfigure active HSRP on DC2.

Configuring active HSRP on DC2, possibly alongside another active HSRP on DC1, does not inherently solve the hair-pinning problem for IP mobility across stretched subnets.

BImplement anycast gateways on both DCs.Correct

Implementing anycast gateways on both data centers ensures that a mobile host in a stretched subnet always uses its local gateway for default forwarding. This prevents traffic from being hair-pinned across the DCI to the remote data center's gateway, optimizing traffic flow and providing local egress for IP mobility.

CAdvertise host routes on both DCs.

Advertising host routes on both DCs would significantly increase routing table size and complexity, and does not inherently prevent hair-pinning for general subnet traffic or dynamic host movements.

DFilter stretched subnets on DC2 with outbound route map.

Filtering stretched subnets on DC2 contradicts the requirement that both data centers advertise the stretched subnets to the WAN.

Concept tested: Anycast gateways for active/active DCI

Source: https://www.cisco.com/c/en/us/td/docs/solutions/CVD/DC/CVD-Data-Center-VXLAN-EVPN-Fabric-Design-2022.html#_VXLAN_EVPN_Multi-Site_Deployment

Topics

#active/active DCI#IP mobility#stretched subnets#anycast gateway
